CKC Lighting

FC Pendant 200

Source: 72×3.5W RGBWL LED
Output：6800 Lm
Beam angle：36°
Field angle：79°
CCT：2400K~8500K
IP rating：IP30
Size：197 × 197 × 299 mm
N.W：5.2 kgs

Pay in 4 interest-free installments of $133.12 with

Key Features

Source：72×3.5W RGBWL LED
Beam angle：36°
Field angle：79°
Output: 6800 Lm
CCT: 2400 ~ 8500K
Specifications

OPTIC
Source：72×3.5W RGBWL LED
Output：6800 Lm
Beam angle：36°
Field angle：79°
CCT：2400K~8500K
Source lifetime：>20000 H
EFFECT
Dimmer curve：4 kinds Linear/Square/Square Inverse/S-Curve
Strobe: 1 ~ 25Hz
CONTROL & PROGRAM
Channel：1CH/4CH/5CH/10CH/10CH/17CH/4CH/9CH
Protocal：DMX512、RDM
Data connector：3 PIN (or 5 PIN) XLR
Dsiplay：Touch screen display operation panel
Automatic color calibration system to ensure stable and consistent color and color temperature
SOFTWARE
Via DMX signal to update
Intelligent temperature protection to ensure LED service life
Surface temperature：68℃
HOUSING
Aluminum alloy die-casting structure
Natural heat dissipation
OTHER
IP rating：IP30
Work environment：-40℃—45℃
Startup environment：-20℃—45℃
POWER CONSUMPTION
Voltage：AC 110V-240V 50/60HZ
Rated power：150W
Power factor：0.99
SIZE & WEIGHT
Size：197 × 197 × 299 mm
N.W：5.2 kgs
Included Accessories
Downloads
FC Pendant 200 Data Sheet FC Pendant 200 DMX Chart FC Pedant 200 User Manual FC Pendant 200 DWG
Buying Guide

Is the FC Pendant 200 right for you?

The FC Pendant 200 is a house light for venues and productions that need both colour and tunable white from one fixture. A 72×3.5W RGBWL LED source delivers 6800 Lm with a 36° beam angle and a CCT range of 2400K to 8500K. Four dimmer curves, DMX512 and RDM control and a touch screen panel give you control at the fixture and from the desk, while automatic colour calibration keeps colour and colour temperature consistent. It draws 150W on AC 110V to 240V.

Also in the range

For similar CKC Lighting fixtures, look at the FC Pendant 300 and the Pendant 300. See all house lights.

Need help choosing? Call StageKraft on +61 2 9982 1494 or email sales@stagekraft.com.au.

Related Products

FC Pendant 300

FC Pendant 300

Pendant 300

Pendant 300

LSD5 Light & Sound

LSD5 Light & Sound

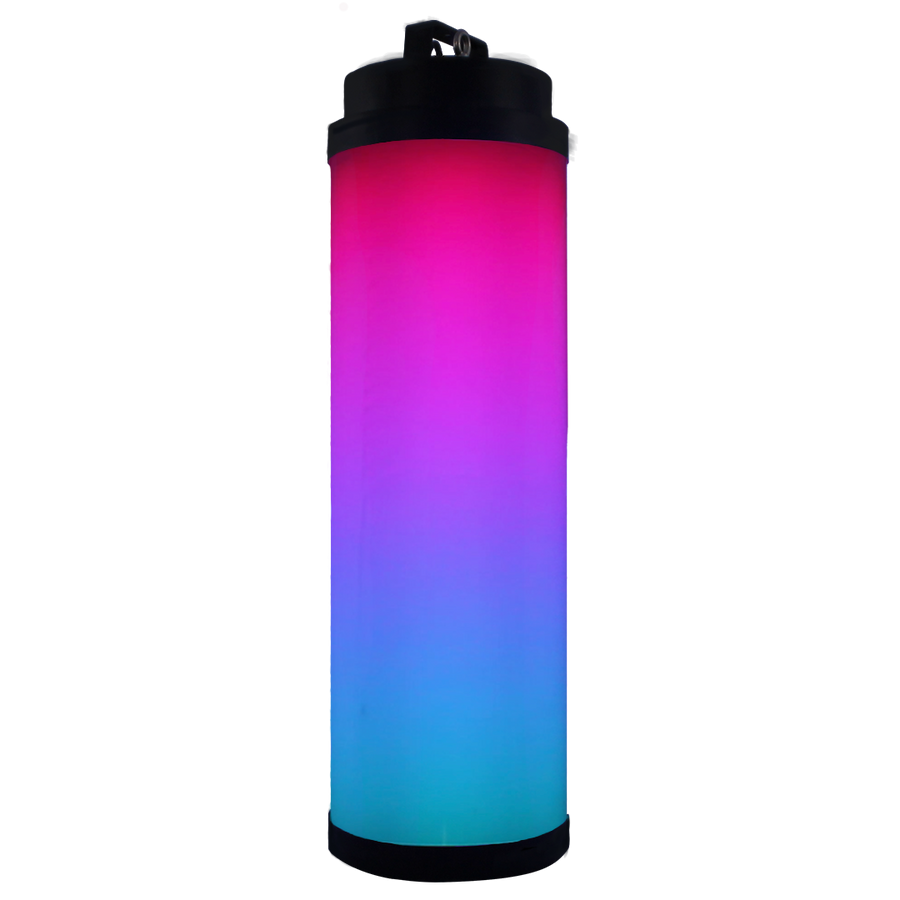

Paramount Pendant Q350
