CKC Lighting

Proxima Hybrid

$0.00 AUD
Regular price
Unit price
per
Tax included

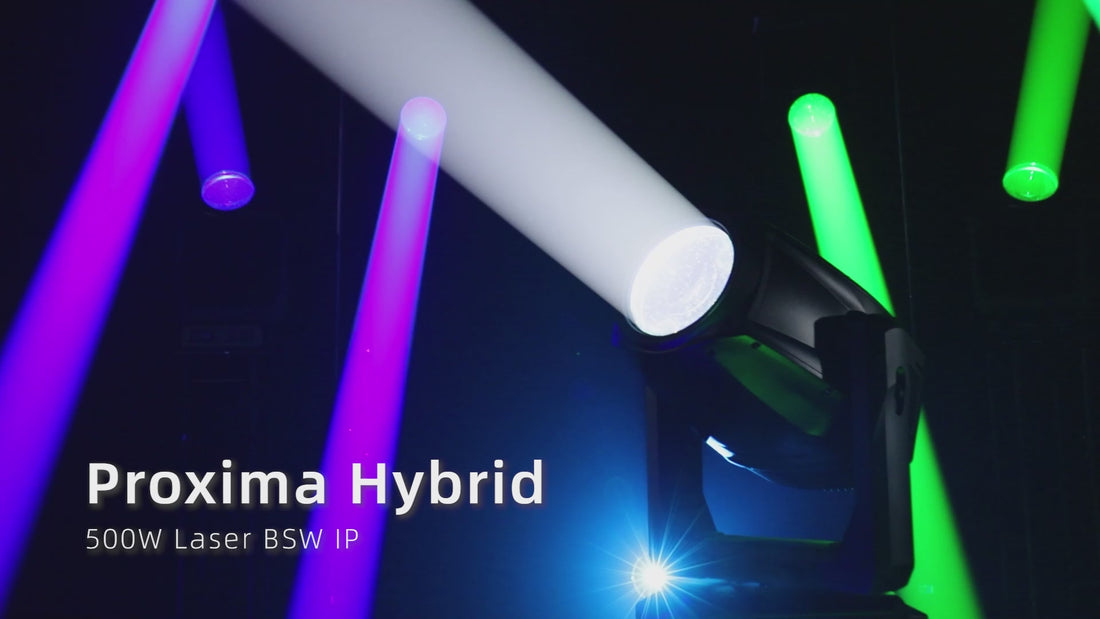

The Proxima Hybrid from CKC Lighting features a 500W Laser engine, packed into a sleek 32.5kg housing. Providing a razor sharp 0.9º to 25.5º Beam, 34 Gobos, multiple overlapping Prisms and deep saturated colours the Proxia Hyrbid provides ultimate versatility and performance in demanding indoor and outdoor conditions.

Pay in 4 interest-free installments of $133.12 with

Key Features

Source: 500W laser
Beam angle：0.9 ~ 17.3°
Spot angle：2.3 ~ 25.5°
Wash angle: 3.7 ~ 38°
Beams, spot, Wash Perfect 3 in 1
Output：23000 Lm
Lux：760000 Lux@10m
Rotation gobo wheel：12 + 1
Fixed gobo wheel：22 + 1
Color wheel：17 + 1 / CMY
Prism：6linear+8prism+12prism+24prism
IP rating: IP66
Specifications

OPTIC
Source: 500W laser
Beam angle：0.9 ~ 17.3°
Spot angle：2.3 ~ 25.5°
Wash angle: 3.7 ~ 38°
Output：23000 Lm
Lux：760000 Lux@10m
CCT：8500 K
Lens diameter：180mm
Source lifetime：>20000 H
EFFECT
Strobe：1～25Hz
Fixed gobo wheel：22+ 1
Rotation gobo wheel：12 + 1
Gobo: Ф11mm, lmage: Ф 5 mm, thickness: 1.1mm
Color wheel：17 + 1
CMY
Prism：Wheel 1（6linear）
Prism：Wheel 2（8prism+12prism+24prism）
Frost：1
Animation：1
CONTROL & PROGRAM
Channel：29 / 36CH
Protocal：DMX512, RDM，ArtNet/sACN
Data connector：3 PIN (or 5 PIN) XLR，RJ45
Display: 2.4 LCD screen the operation panel has a rechargeable battery that allows you to access the menu to set the address code and make other settings without power on
NFC: The lighting fixtures do not require power on and can be directly set up, diagnosed, and perform other functions through the CKC app
SOFTWARE
Via DMX signal to updat
Static waterproof fan intelligent speed control
Intelligent temperature protection to ensure LED service life
PAN & TILT MOVEMENT
Pan: Infinite rotation (360° )
Tilt: 270° 8bit/16bit
HOUSING
Aluminum alloy structure + plastic (VO)
Fan cooling
Salt resistant
OTHER
IP rating: IP66
Work environment: -40℃ ~ 45℃
Startup environment: -20℃ ~ 45℃
POWER CONSUMPTION
Voltage: AC 100V~240V 50/60Hz
Rated power：650W
Power factor：0.99
SIZE & WEIGHT
Size：423 × 286 × 688 mm(Normal version)
Size：423 × 286 × 716 mm(Integrated light hook version)
N.W：33 kgs(Normal version)
34.2kgs(Integrated light hook version)
Carton size：850 × 555 × 485 mm
G.W：40.1 kgs
Included Accessories
