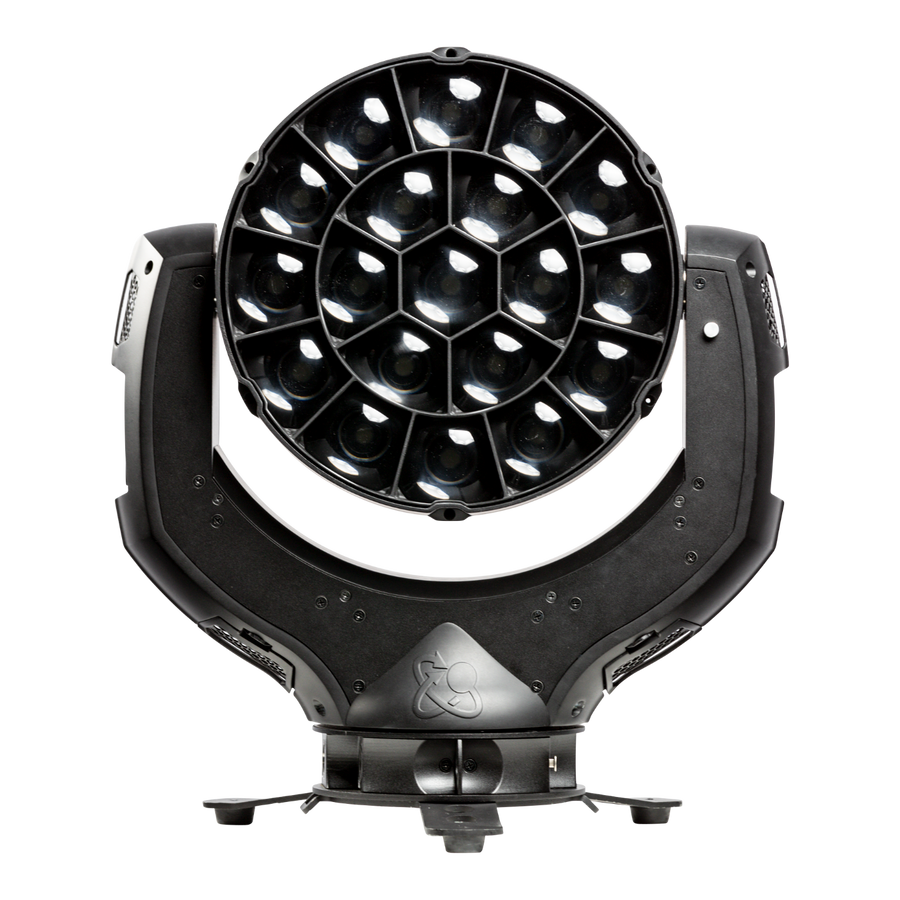

LIGHT SOURCE
Type RGBL LED
Power 40 W
Count 19
Lifetime 50,000 h
LED Refresh Rate Low: 550 Hz
Optimal: dynamic PWM Algorithm
High 1: 4,600 Hz
High 2: 13,000 Hz
Values rounded. For detailed
information, contact GLP
Support
CCT 6,500 K
Duv perfect white point matches
with low Duv values
CRI 8,000 K: 87 | 6,500 K: 86.7 |
3,200 K: 84.8
TLCI 8,000 K: 90 | 6,500 K: 88.5 |
3,200 K: 74.1
TM-30-15 Rf/Rg 6.500 K: 87 / 105
3.200 K: 85 / 110
OPTICAL SYSTEM
Output up to 11,400 lm
Max. Peak Luminous
Intensity 1.8 Mcd
Min. Zoom 3.6°
Max. Zoom 63°
Zoom Ratio 1:17
Light aperature diameter
278 mm / 10.95 in
DYNAMIC EFFECTS
Color mixing RGB | RGBL | x;y
CTC 2,500 – 10,000 K
CQC High Output (HO)
High Quality (HQ)
Desaturation
Color wheel virtual, 64 LEE referenced
colors
Magenta/Green-Shift yes
Tungsten Simulation 8x linked to fix CCT |
8x relative to Colormix
Pattern Effects 50 dynamic pattern macros
with special effects
Zoom 3.6° – 63°
Dimmer 0 – 100 %, 16 bit
Shutter variable speed, with effects
MOVEMENT
Pan 540° normal, extended 660°,
16 bit
Tilt 230°, 16 bit
CONTROL & PROGRAMMING
DMX Channels M1: CH24 | M2: CH35 |
M3: CH41 | M4: CH89 |
M5: CH70 | M6: CH89
Control Modes M1: Basic | M2: Normal |
M3: Segment | M4: Multipix
Advanced | M5: Multipix Compressed
RGB | M6: Multipix
Compressed RGBL
Protocols DMX (USITT DMX512-A) |
RDM (ANSI/ESTA E1.20) |
Art-Net | sACN | GLP iQ.Mesh |
LumenRadio CRMX
High-Res Channels Pan | Tilt | Intensity | Colormix
Dimming Curves Linear | Soft | S-Curve
Performance Modes Fast | Normal (Balanced) |
Smooth
Fan Modes Regulated | High | Medium |
Low | Off
Subfixture Mode Normal | Independent
White Points 8,000 K | 5,600 K | 4,200 K |
3,200 K
PWM Low | Optimal | High 1 |
High 2
Setting and
addressing
backlit graphic LCD |
4 Button Menu Navigation |
DMX | RDM | iQ.Service App
Others 1 Scene Stand Alone | Art-Net/
sACN Node | Data Conversion
| GLP iQ.Mesh | NFC |
FPO Port (Flexible Protocol
Option)
Firmware Update DMX Link via DProg | GLP
iQ.Mesh
CONNECTIONS
Power connection Neutrik powerCON True1
In/Out
Signal connection Neutrik XLR 5-Pin In/Out |
Neutrik etherCON port A & B
(failsafe) | GLP FX.Port
ELECTRICAL SPECIFICATIONS
Power input 100 – 240 V AC / 50 – 60 Hz
Power supply unit Auto-ranging electronic
switch mode
Max. Power 700 W
THERMAL SPECIFICATIONS
Cooling Type combined convection
and forced air
Temperature range,
Operating -10 °C – 45 °C / 14 °F – 115 °F
Thermal Protection automatic
Total heat
dissipation 2,400 BTU/h
INSTALLATION
Mounting 2 pair of 1/4-turn locks |
Safety Cable attachment
point | 2x M10 Screw Thread
for direct mount of Rigging
Clamp
Orientation Any
Location Indoor | Outdoor
CONSTRUCTION
Housing color Black
Material High-impact flame-resistant
thermoplastic | Aluminum |
Steel

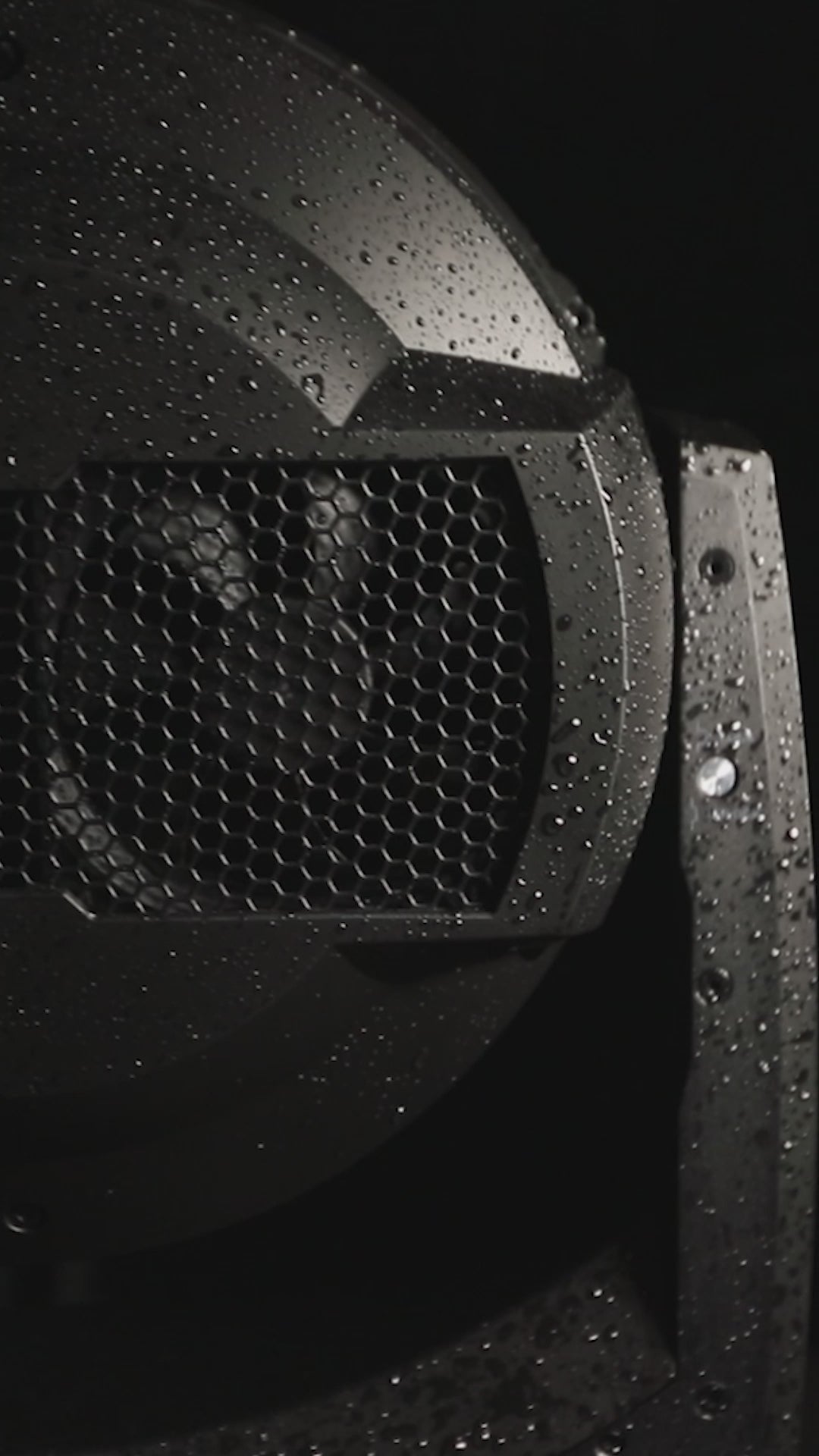

Protection Rating IP 65
Construction
Features
prepared for external
accessories | Tilt-Lock-System
SHIPPING
Single fixture Cardboard
Tourpack 2-way
DIMENSIONS & WEIGHT
Height
Head home
Head vertical
487 mm / 19.1 in
530 mm / 20.8 in
Width across yoke 377 mm / 14.8 in
Depth 324 mm / 12.7 in
Weight netto 21 kg / 46 lbs
ARTICLE NUMBERS
impression X5 IP 7793
