CKC Lighting

AK Storm Bar

SKU: CKC-AK StormBar

Source: 960 x 0.5W RGB LED
Source: 198 x 3W CW LED
Output：15200 Lm
Beam angle：RGB：X：77° Y：59°
Beam angle：CW：X：85° Y：19°
Field angle：RGB：X：118° Y：103°
Field angle：CW：X：117° Y：66°
IP rating：IP65
Size：1007 × 180 × 190 mm
N.W：10 kgs

Pay in 4 interest-free installments of $133.12 with

Key Features

Source：960 x 0.5W RGB LED
198 x 3W CW LED
Output：15200 Lm
Rated power: 350 W
Strobe power: 800 W
Resistant to salt corrosion
Specifications

OPTIC
Source：960 x 0.5W RGB LED
Source：198 x 3W CW LED
Output：15200 Lm
Beam angle：RGB：X：77° Y：59°
Beam angle：CW：X：85° Y：19°
Field angle：RGB：X：118° Y：103°
Field angle：CW：X：117° Y：66°
Source lifetime：>20000 H
EFFECT
Strobe：1～25Hz
LED refresh rate：900Hz~25KHz
Dimming Mode：5
Dimming Curve：4
CONTROL & PROGRAM
Channel：15 / 80 / 137 CH
Protocal：DMX512, RDM
Data connector: 3 PIN (or 5 PIN) XLR
Display：OLED display
SOFTWARE
Via DMX signal to update
Static waterproof fan, intelligent speed control
Intelligent temperature protection to ensure LED service life
HOUSING
Aluminum alloy structure
Fan cooling
Resistant to salt corrosion
OTHER
IP rating：IP65
Work environment：-40℃—45℃
Startup environment：-20℃—45℃
POWER CONSUMPTION
Voltage：AC 100V-240V 50/60HZ
Rated power：350 W
Strobe power：800 W
SIZE & WEIGHT
Size：1007 × 180 × 190 mm
N.W：10 kgs
Carton Size：1110 × 280 × 215 mm
G.W：12.5 kgs
Included Accessories
Downloads
AK Storm Bar Data Sheet AK Storm Bar DMX Chart AK Storm Bar User Manual AK Storm Bar DWG
Buying Guide

Is the AK Storm Bar right for you?

The AK Storm Bar combines 960 x 0.5W RGB LEDs with 198 x 3W CW LEDs in a single 1007 x 180 x 190 mm aluminium alloy housing, putting out 15200 Lm. It is rated IP65, resists salt corrosion and works from -40°C to 45°C, which suits rigs exposed to weather. Control is by DMX512 and RDM in 15, 80 or 137 channel modes, with strobe from 1 to 25Hz and 800 W strobe power.

Also in the range

For other CKC Lighting fixtures, look at the EV Block IP, EV Stick IP and Evo Linebar 48. See all strobes.

Need help choosing? Call StageKraft on +61 2 9982 1494 or email sales@stagekraft.com.au.

Related Products

AK M Blast

AK M Blast

JDC LINE 1000

JDC LINE 1000

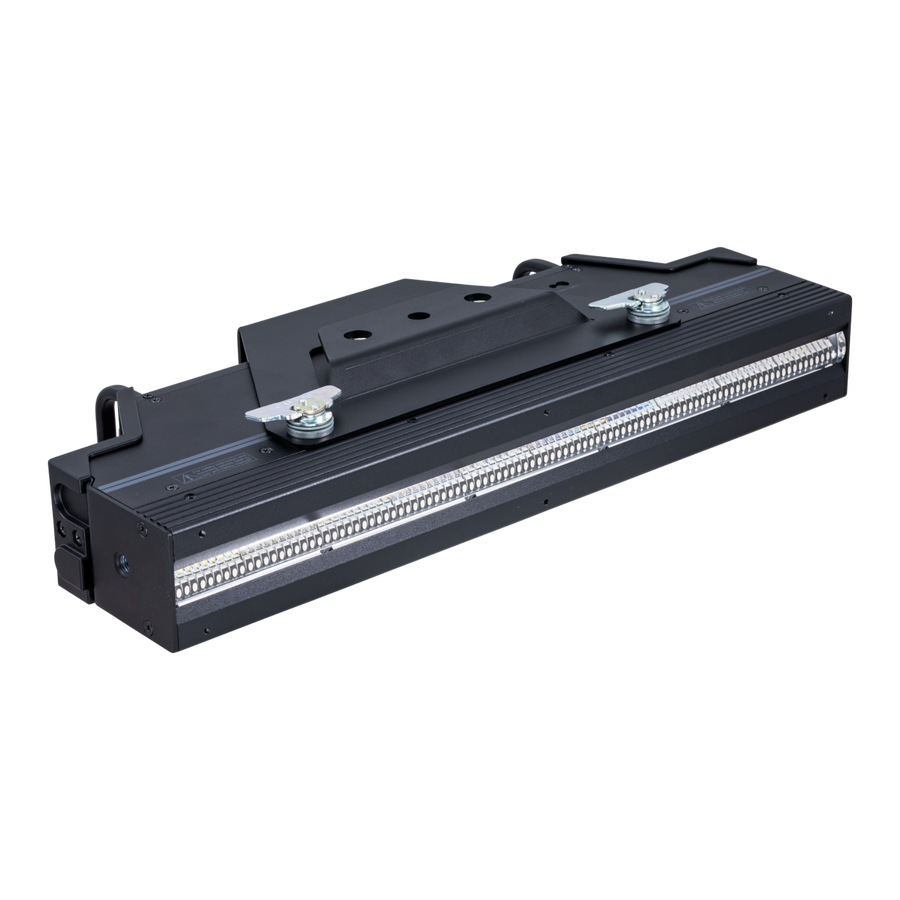

JDC LINE 500

JDC LINE 500

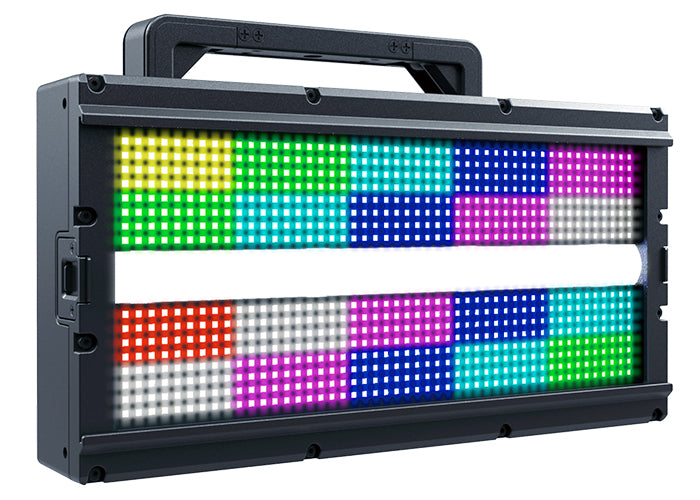

EV Block IP
