CKC Lighting

Cyc X

SKU: CKC-CYC X

Source: 160 ×3.5W RGBLA LED
Output：18400Lm
Lux：718 Lux@5m
Horizontal beam angle：66° (50%)
Vertical beam angle：39° (50%)
Horizontal field angle：102°（10%）
Vertical field angle：71°（10%）
CCT：2400 ~ 8500K
Ra：90+
IP rating：IP30
Size：957 × 206 × 85 mm
N.W：7.9 kgs

Pay in 4 interest-free installments of $133.12 with

Key Features

Source：160 ×3.5W RGBLA LED
Output：18400Lm
Horizontal beam angle：66° (50%)
Vertical beam angle：39° (50%)
Horizontal field angle：102°（10%）
Vertical field angle：71°（10%）
CCT：2400 ~ 8500K
Ra：90+
Specifications

OPTIC
Source：160 ×3.5W RGBLA LED
Output：18400Lm
Lux：718 Lux@5m
Horizontal beam angle：66° (50%)
Vertical beam angle：39° (50%)
Horizontal field angle：102°（10%）
Vertical field angle：71°（10%）
CCT：2400 ~ 8500K
Ra：90+
Source lifetime：>20000 H
EFFECT
Strobe：1～25Hz
LED refresh rate：900Hz~25KHz
Dimmer Mode：6 kinds
Dimmer Curve：4 kinds
CONTROL & PROGRAM
Channel：1 / 4-1 / 4-2 / 11 / 16 / 13 / 20 / 19 / 32 / 31 / 56 CH
Protocal：DMX512, RDM，ArtNet/sACN
Data connector: 3 PIN (or 5 PIN) XLR，RJ45
Display: OLED display
SOFTWARE
Via DMX signal to update
Intelligent temperature protection to ensure LED service life
HOUSING
Aluminum alloy structure
Natural heat dissipation
OTHER
IP rating：IP30
Work environment：-40℃—45℃
Startup environment：-20℃—45℃
POWER CONSUMPTION
Voltage：AC 100V-240V 50/60HZ
Rated power：410W
SIZE & WEIGHT
Size：957 × 206 × 85 mm
N.W：7.9 kgs
Carton size：1070 × 310 × 180 mm
G.W：10.4 kgs
Included Accessories
Downloads
Cyc X Data Sheet Cyc X DMX Chart Cyc X User Manuał Cyc X DWG
Buying Guide

Is the Cyc X right for you?

The Cyc X is a CKC Lighting cyclorama fixture built around 160 x 3.5W RGBLA LEDs, delivering 18400Lm with a 66° by 39° beam angle and a 2400 to 8500K CCT range at Ra 90+. It suits lighting designers and production companies lighting cycs and backdrops who want high colour rendering and a wide spread. Control covers DMX512, RDM and ArtNet/sACN, with a 900Hz to 25KHz LED refresh rate and 1 to 25Hz strobe. At 957 x 206 x 85 mm and 7.9 kgs, it is a slim aluminium alloy bar.

Also in the range

For other cyclorama and bar fixtures from the same brand, look at Cyc M, Evo Linebar 72 and PixBar 1515. See all ckc lighting.

Need help choosing? Call StageKraft on +61 2 9982 1494 or email sales@stagekraft.com.au.

Related Products

Cyc M

Cyc M

Footslim M

Footslim M

Footslim X

Footslim X

Evo Linebar 12

Evo Linebar 12

Evo Linebar 48

Evo Linebar 48

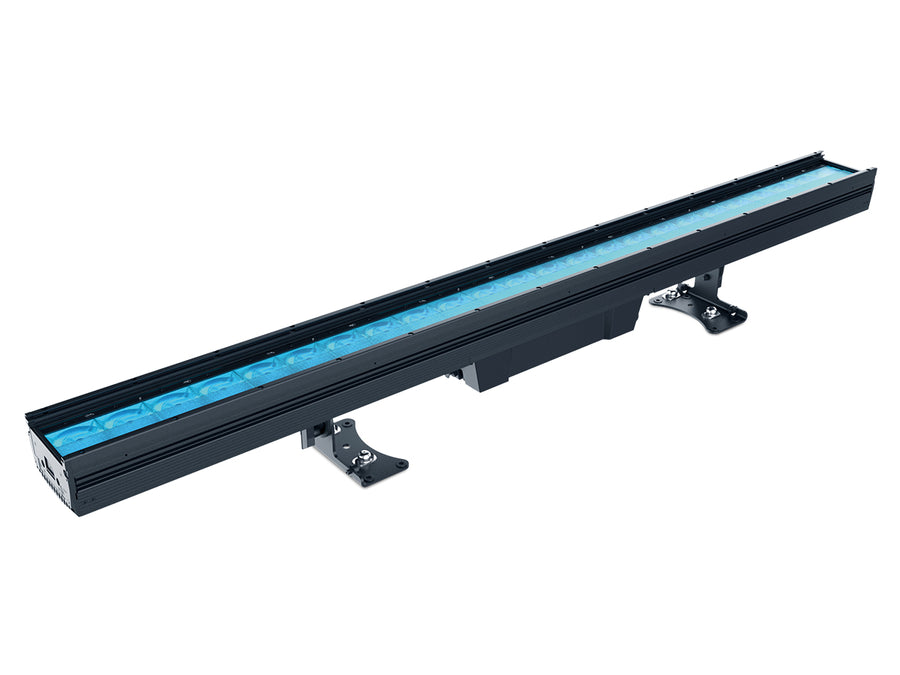

Evo Linebar 72
