CKC Lighting

Evo Linebar 72

SKU: CKC-EvoLine 72

Source: 24 × 100W RGBAL LED
Output：62900 Lm
Beam angle：83°×25°
Field angle：99°×56°
CCT：2400~8500K
CRI：95
R9：95
IP rating：IP66
Size：1806 × 184 × 239 mm
N.W：27.5 kgs

Pay in 4 interest-free installments of $133.12 with

Key Features

Source：24 × 100W RGBAL LED
Output：62900Lm
Beam angle：83°×25°
Field angle：99°×56°
Uniform RGBAL color mixing system and rainbow effect
Create unlimited movement, infinite color changes
Specifications

OPTIC
Source：24 × 100W RGBAL LED
Output：62900 Lm
Beam angle：83°×25°
Field angle：99°×56°
CCT：2400~8500K
CRI：95
R9：95
Source lifetime：>20000 H
EFFECT
Strobe：1 ~ 25 Hz
Dimmer Curve：4 kinds
Built effects：12 kinds
CONTROL & PROGRAM
Channel：1 / 9 / 16 / 21 / 15 / 154 / 274 CH
Protocal：DMX512，RDM，ArtNet/sACN
Data connection：5PIN XLR , RJ45
Display： LCD display
SOFTWARE
Via DMX signal to update
Intelligent temperature protection to ensure LED service life
HOUSING
Aluminum alloy structure
Fan cooling
Resistant to salt corrosion
OTHER
IP rating：66
Work environment：-40℃—45℃
Startup environment：-20℃—45℃
POWER CONSUMPTION
Voltage：AC 100V-240V 50/60HZ
Rated power：1225 W
SIZE & WEIGHT
Size：1806 × 184 × 239 mm
N.W：27.5 kgs
Included Accessories
Buying Guide

Is the Evo Linebar 72 right for you?

The Evo Linebar 72 is an 1806 mm linear fixture built around 24 × 100W RGBAL LEDs, putting out 62900 lm with an 83°×25° beam angle. CRI 95 and R9 95 across a 2400 to 8500K CCT range suit work where colour rendering matters. The IP66 rating, aluminium alloy housing and salt corrosion resistance make it a fit for exposed conditions, with a working range of -40℃ to 45℃. Control is via DMX512, RDM or ArtNet/sACN.

Also in the range

Related CKC Lighting fixtures include Evo Linebar 12, Evo Linebar 48 and PixBar 1515. See all bars.

Need help choosing? Call StageKraft on +61 2 9982 1494 or email sales@stagekraft.com.au.

Related Products

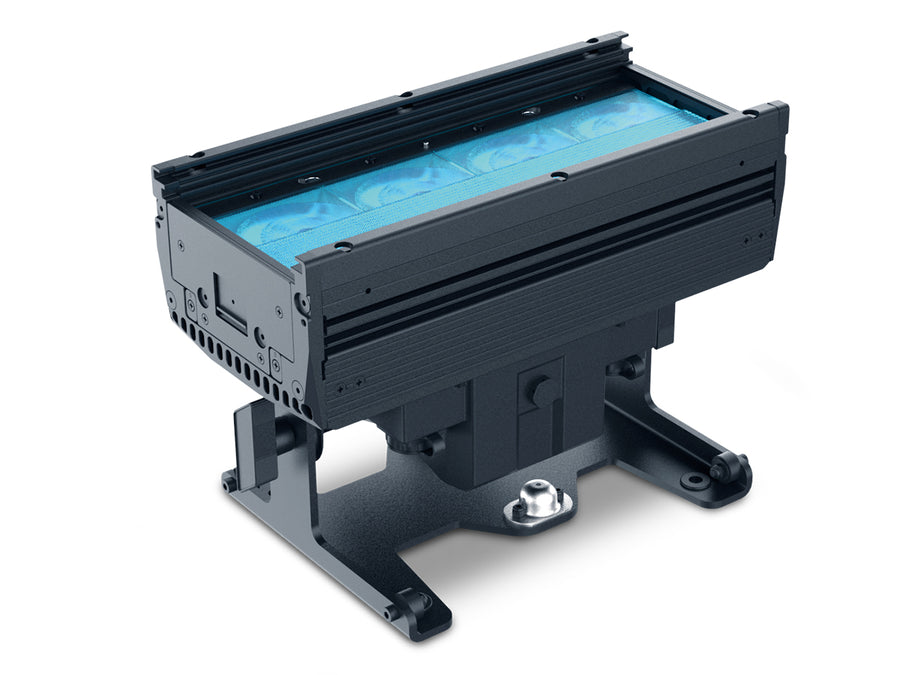

Evo Linebar 12

Evo Linebar 12

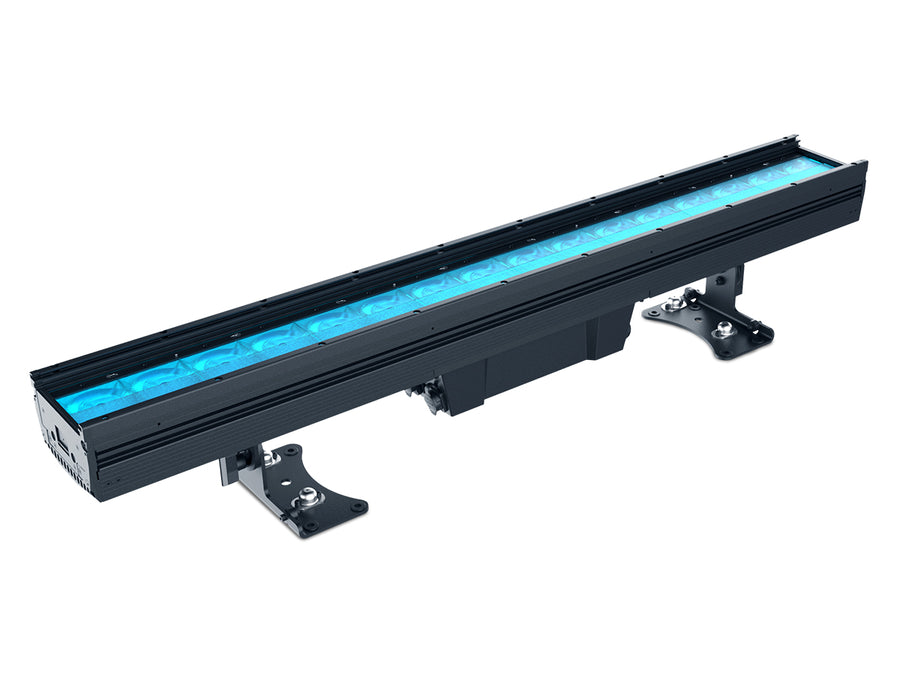

Evo Linebar 48

Evo Linebar 48

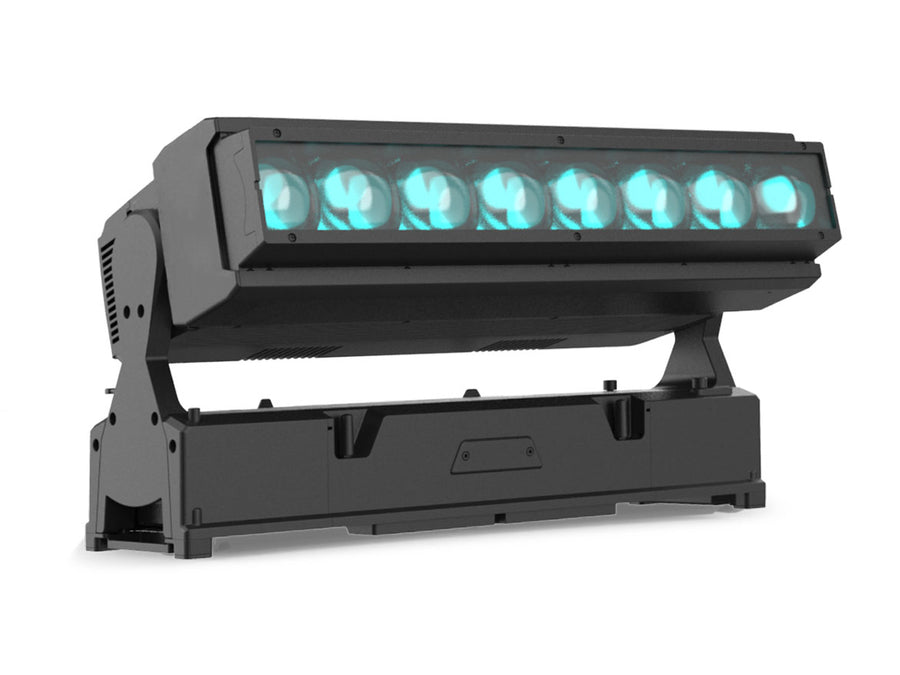

Evo T Single

Evo T Single

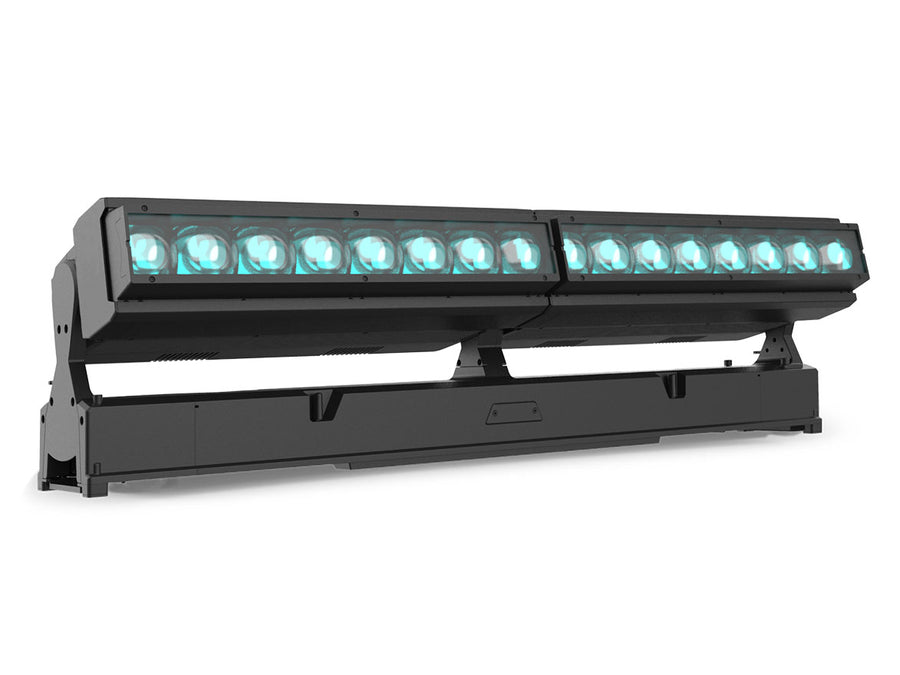

Evo T Double

Evo T Double

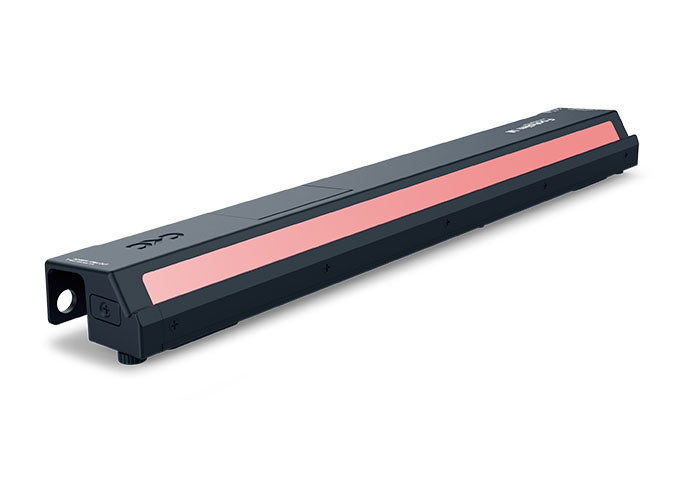

Footslim M

Footslim M

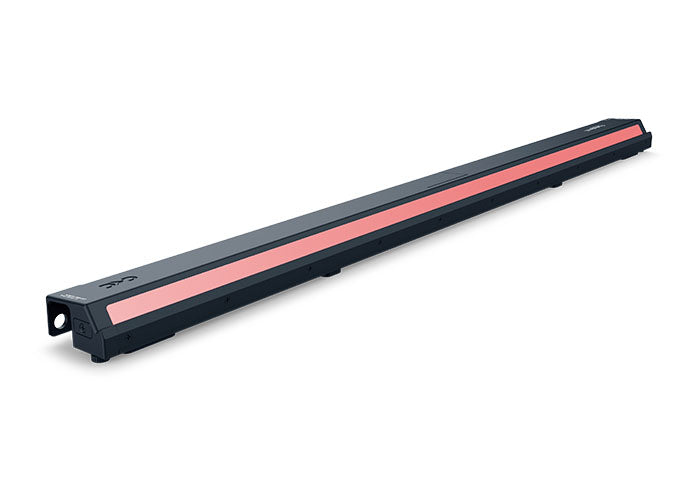

Footslim X
