CKC Lighting

Evo T Double

SKU: CKC- Evo T Double

Source: 16 × 60W RGBL LED + 32×10W CW LED
Output: 24000Lm
Zoom Range：3~54°
CCT：2400K-8500K
Tilt: 210° 8bit/16bit
IP rating：IP55
Size：1004 × 140 × 337 mm
N.W：24.7 kgs

Pay in 4 interest-free installments of $133.12 with

Key Features

LED: 16 × 60W RGBL LED + 32×10W CW LED
Output: 24000Lm
Zoom Range：3~54°
CCT:2400~8500K
Tilt: 210°
IP55
Specifications

OPTIC
Source: 16 × 60W RGBL LED + 32×10W CW LED
Output: 24000Lm
Zoom Range：3~54°
CCT：2400K-8500K
Source lifetime：>20000 H
EFFECT
Uniform RGBL color mixing system and rainbow effect, single point LED control
Strobe: 1 ~ 25Hz
LED refresh rate：1200Hz~25KHz
Create unlimited dynamic, unlimited color changes
CONTROL & PROGRAM
Channel：24 / 33 / 121 CH
Protocal: DMX512, RDM, ArtNet/sACN
Data connector: 3 PIN (or 5 PIN) XLR,RJ45
Display: 2.4 inches touch screen
NFC：The lighting fixtures do not require power on and can be directly set up, diagnosed, and perform other functions through the CKC app
SOFTWARE
Via DMX signal to update
Silent fan, intelligent speed regulation
Intelligent temperature protection to ensure LED service life
PAN & TILT MOVEMENT
Tilt: 210° 8bit/16bit
HOUSING
Aluminum alloy structure + plastic (VO)
Fan cooling
OTHER
IP rating：IP55
Work environment：-40℃—45℃
Startup environment：-20℃—45℃
POWER CONSUMPTION
Voltage：AC 100V-240V 50/60HZ
Rated power：1300W
SIZE & WEIGHT
Size：1004 × 140 × 337 mm
N.W：24.7 kgs
Included Accessories
Downloads
Evo T Double Data Sheet Evo T Double DMX Chart Evo T Double User Manual
Buying Guide

Is the Evo T Double right for you?

The Evo T Double is a CKC Lighting moving bar built around 16 × 60W RGBL LEDs and 32×10W CW LEDs, delivering 24000Lm with a 3 to 54° zoom range. CCT runs from 2400K to 8500K, and single point LED control with a rainbow effect gives designers detailed colour control. The IP55 rating suits productions that need a weather-rated fixture. Control is over DMX512, RDM and ArtNet/sACN, and NFC lets crews set up and diagnose the unit through the CKC app without powering it on.

Also in the range

For a lighter single-bar option, look at the Evo T Single, or compare the Evo Linebar 72 and EvoWash Pro from the same brand. See all m bars.

Need help choosing? Call StageKraft on +61 2 9982 1494 or email sales@stagekraft.com.au.

Related Products

Evo T Single

Evo T Single

WildBar 16 IP

WildBar 16 IP

X5 Bar 1000

X5 Bar 1000

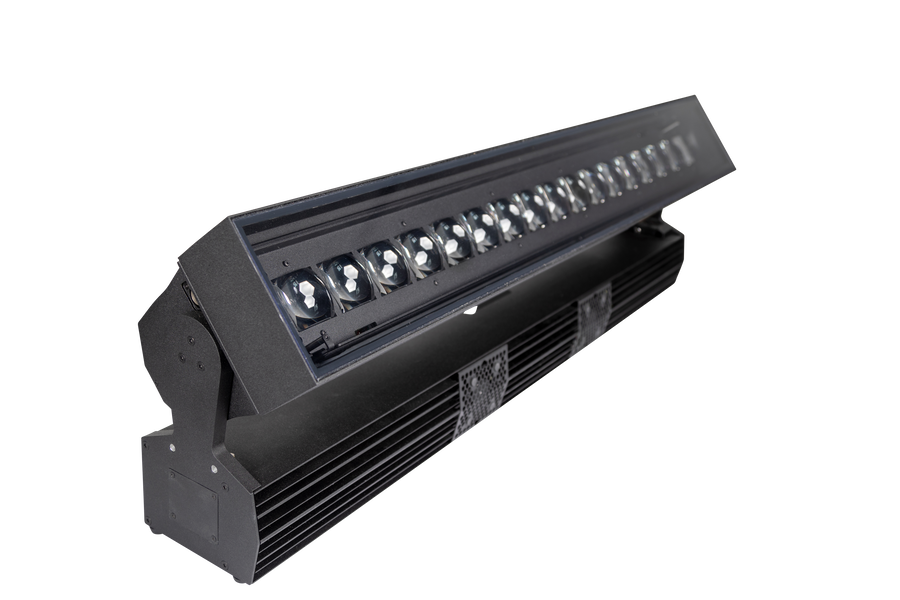

X5 IP Bar
