GLP

FR1

SKU: 7686
$0.00 AUD
Regular price
Unit price
per
Tax included

The GLP impression FR1 uses a 60W RGBW Osram Ostar LED engine paired with GLP’s Micro Fresnel lens system to deliver a smooth, even wash with clean colour mixing. The motorised zoom range from 3.5° to 34° allows the fixture to move from tight beam looks to broader wash coverage while maintaining a soft, controlled edge.

Continuous pan movement gives the FR1 additional flexibility for dynamic movement effects and creative programming. At only 4 kg, the fixture is easy to install in venues where rigging capacity, fixture size and visual appearance matter. It is well suited to theatres, studios, corporate events, galleries and compact stage applications requiring smooth RGBW colour, reliable zoom control and precise movement from a small moving light.

Pay in 4 interest-free installments of $133.12 with

Key Features

60W RGBW Osram Ostar LED
Micro Fresnel lens system
Motorised 3.5°–34° zoom
Continuous pan movement
Compact 4 kg body
Smooth RGBW colour mixing
Soft-edge wash output
Suitable for compact rigging positions
Specifications

LIGHT SOURCE
Type RGBW LED
Power 60 W
Lifetime 50,000 h
CRI 80
TLCI 80
TM-30-15 Rf/Rg 77 / 106
OPTICAL SYSTEM
Total Output 790 lm
Peak Luminous
Intensity 105 kcd
Output Lens 100 mm
Min. Zoom 3.7°
Max. Zoom 35°
Zoom Ratio 1:10
DYNAMIC EFFECTS
Color mixing RGBW
CTC 2,500 – 10,000 K, electronic
Dimmer 0 – 100 %, electronic
Shutter Max. 25 Hz, electronic
Technical Data
MOVEMENT
Pan 629°, continuous
Tilt 210°
Continuous
movement 360° Pan
CONTROL & PROGRAMMING
DMX Channels 16
Control Modes 1
Dimming Curves Linear | Soft
Fan Modes Regulated | High | Medium |
Low
Protocols DMX (USITT DMX512-A) |
RDM (ANSI/ESTA E1.20)| LumenRadio
CRMX
High-Res Channels Intensity | Pan | Tilt
Setting and
addressing
Backlit graphic LCD | 4 Button
Menu Navigation | DMX |
RDM
CONNECTIONS
FR1 Version
Power connection Neutrik powerCON In/Out
Signal connection Neutrik XLR 5-Pin In/Out
FR1 TM VERSION
Power connection EUTRACK Trackmount Adapter
Signal connection
CRMX Version
DoP Version
LumenRadio CRMX
GLP DoP
ELECTRICAL SPECIFICATIONS
Power input 100 – 240 V AC / 50 – 60 Hz
Power supply unit Auto-ranging electronic
switch-mode
Power 85 W
Fuse T5A 20mm
THERMAL SPECIFICATIONS
Cooling Type Combined convection and
forced air
Temperature range 5 °C / 40 °F to 45 °C / 113 °F
Thermal Protection Automatic
Total heat dissipation
290 BTU/h
INSTALLATION
Mounting 1x Safety Cable attachment
point | FR1 Version: M10 socket
for half coupler or other
clamp | FR1 TM Version: 1x EUTRACK
Trackmount Adapter
Orientation
FR1 Version
FR1 TM Version
Any
Hanging only
Location Dry location only
CONSTRUCTION
Housing color Black | White
Housing material High-impact flame-resistant
thermoplastic | Aluminum |
Steel Metal Plates
Protection Rating IP20
Construction Features
FR1 Version
FR1 TM Version
baseless design
EUTRACK Adapter for Trackmount
installation
SHIPPING
Single fixture Cardboard
Tourpack 6-way | 12-way
DIMENSIONS & WEIGHT
Height Head vertical 264 mm / 10.39 in
Widht 190 mm / 7.48 in
Depth 140 mm / 5.51 in
Weight netto 4 kg / 8.81 lbs
ARTICLE NUMBERS
IMPRESSION FR1
Black housing 7686
White housing 7684
IMPRESSION FR1 TM
Black housing 7687
White housing 7688
IMPRESSION FR1 TM DOP
Black housing 7691
White housing 7692
Included Accessories
Downloads
FR1 Data Sheet FR1 Cut Sheet FR1 DMX Chart FR1 User Manual FR1 Photometrics FR1 DWG

Related Products

FR1 Track Mount

FR1 Track Mount

X5 Compact

X5 Compact

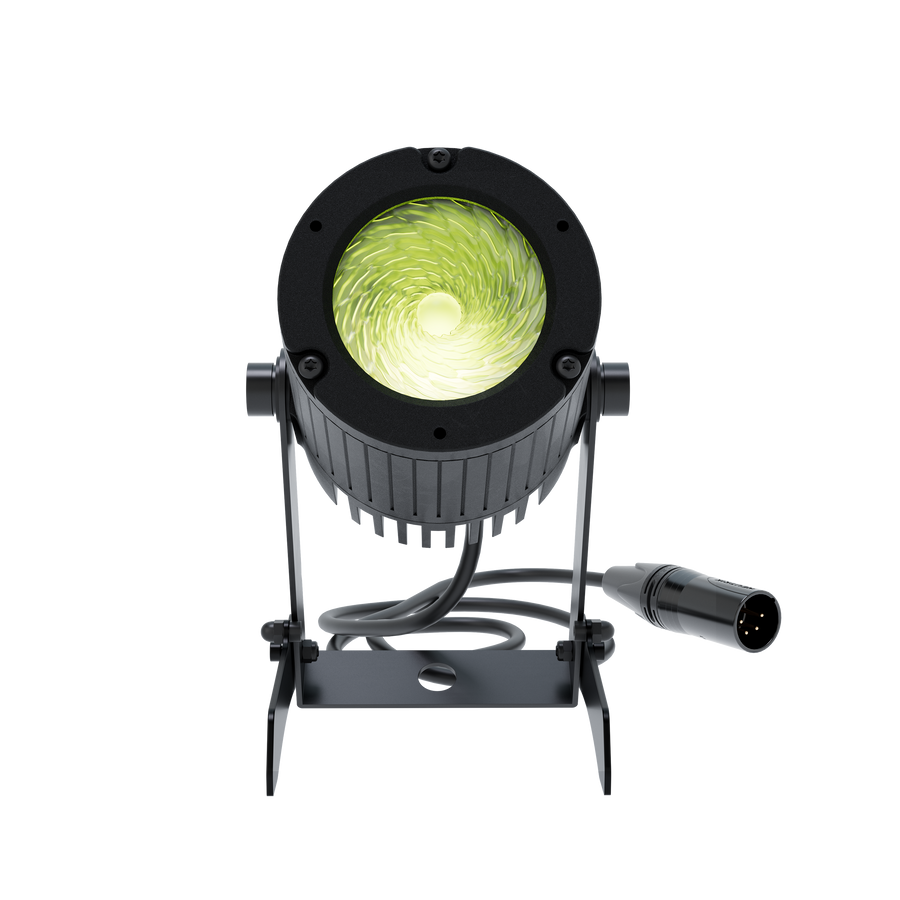

X5 Dot
