CKC Lighting

L Par 18

SKU: CKC-L Par 18

Source: 18 × 20W RGBL LED
Output：12100 Lm
Beam angle：10°（Optional：25° / 40° / 60° / 100°）
Field angle：19°（Optional：40° / 63°）
CCT：2700~7000K
IP rating：IP65
Size：338 × 198 × 328 mm
N.W：7.1 kgs

Pay in 4 interest-free installments of $133.12 with

Key Features

Source：18 × 20W RGBL LED
Output：12100 Lm
Beam angle：10°（Optional：25° / 40° / 60° / 100°）
Field angle：19°（Optional：40° / 63°）
IP rating：IP65
Resistant to salt corrosion
Specifications

OPTIC
Source：18 × 20W RGBL LED
Output：12100 Lm
Beam angle：10°（Optional：25° / 40° / 60° / 100°）
Field angle：19°（Optional：40° / 63°）
CCT：2700~7000K
Source lifetime：>20000 H
EFFECT
Strobe：1 ~ 25 Hz
LED refresh rate：900Hz~25KHz
CONTROL & PROGRAM
Channel：4 / 7 / 8 / 10 / 13 / 16 CH
Protocal：DMX512, RDM
Data connection：3 PIN (or 5 PIN) XLR
Display：O LCD display
SOFTWARE
Via DMX signal to update
Intelligent temperature protection to ensure LED service life
HOUSING
Die-cast aluminum construction
Fan cooling (intelligent speed regulation)
Resistant to salt corrosion
OTHER
IP rating：IP65
Work environment：-40℃ ~ 45℃
Startup environment：-20℃ ~ 45℃
POWER CONSUMPTION
Voltage：AC 100V ~ 240V 50/60Hz
Rated power：287 W
SIZE & WEIGHT
Size：338 × 198 × 328 mm
N.W：7.1 kgs
Included Accessories
Downloads
L Par 18 Data sheet L Par 18 User Manual
Buying Guide

Is the L Par 18 right for you?

The L Par 18 is an LED par for productions and venues that need a sealed fixture. It carries an IP65 rating, salt corrosion resistance and a die-cast aluminium housing, with a working range of -40℃ to 45℃. The 18 × 20W RGBL source delivers 12100 Lm through a 10° beam, with 25°, 40°, 60° and 100° optics optional. Control is DMX512 and RDM, with channel modes from 4 to 16 CH.

Also in the range

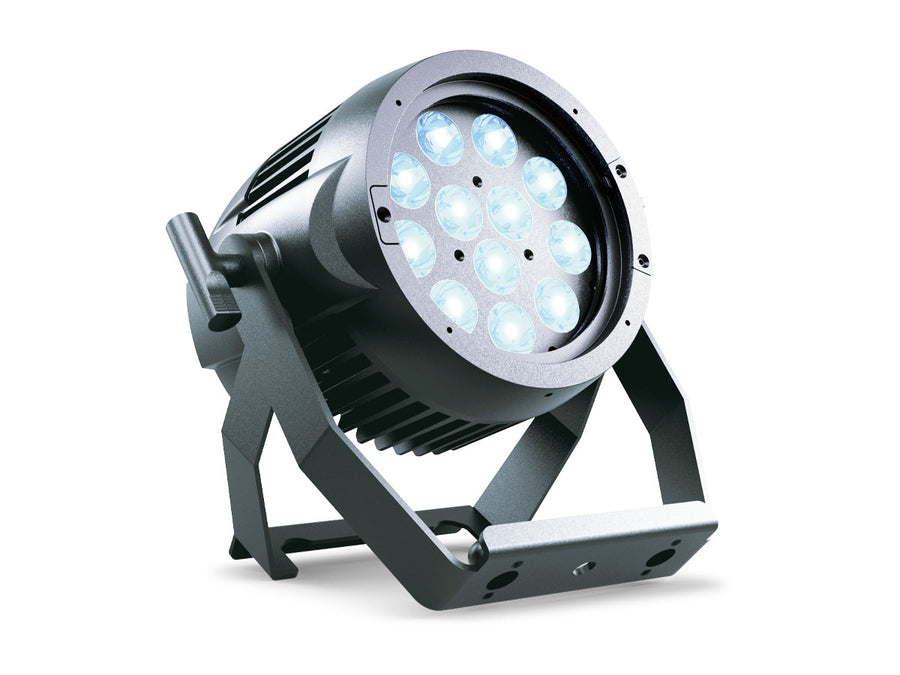

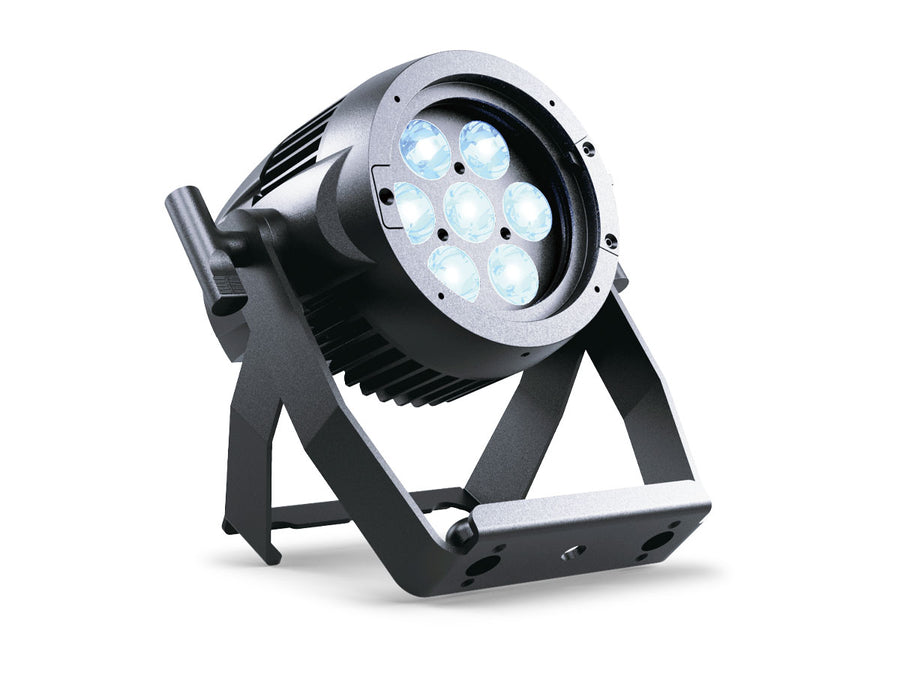

Related pars from CKC Lighting include L Par 12, L Par 7 and Par Z180. See all pars.

Need help choosing? Call StageKraft on +61 2 9982 1494 or email sales@stagekraft.com.au.
