CKC Lighting

Marvel S2P

SKU: CKC-MARVEL S2

Source: 200W CW LED
Output：6900 Lm
Zoom Range：12~22°
CRI：77
Rotation gobo wheel ：6 + 1
Color wheel 1：8 + 1
Color wheel 2：8 + 1
Prism：6 Prism + 5 Linear
Frost：2
Pan：540° or 630° 8bit/16bit
Tilt：270° 8bit/16bit
IP rating：IP30
Size：279 × 183 × 457 mm
N.W：11 kgs

Pay in 4 interest-free installments of $133.12 with

Key Features

Source: 200W CW LED
Output：6900 Lm
Zoom Range：12~ 22°
Rotation gobo wheel：6 + 1
Color wheel：Wheel 1：8 + 1
Wheel 2：8 + 1
Frost：2，1 light + 1 heavy
Prism: 6 Prism + 5 Linear
Specifications

OPTIC
Source: 200W CW LED
Output：6900 Lm
Zoom Range：12~22°
CRI：77
Source lifetime：>20000 H
EFFECT
Strobe：1～25Hz
LED refresh rate：900Hz - 25KHz
Rotation gobo wheel ：6 + 1
Gobo: Ф16.5mm, lmage: Ф 9 mm, thickness: 1.1mm
Color wheel 1：8 + 1
Color wheel 2：8 + 1
Prism：6 Prism + 5 Linear
Frost：2
CONTROL & PROGRAM
Channel：19 / 21 / 25 CH
Protocal：DMX512, RDM
Data connector：3 PIN (or 5 PIN) XLR
Display：1.8 inches colorful screen, the operation panel has a rechargeable battery that allows you to access the menu to set the address code and make other settings without power on
SOFTWARE
Via USB & DMX signal to update
Silent fan, intelligent speed regulation
Intelligent temperature protection to ensure LED service life
PAN & TILT MOVEMENT
Pan：540° or 630° 8bit/16bit
Tilt：270° 8bit/16bit
HOUSING
Aluminum alloy structure + plastic (VO)
Fan cooling
OTHER
IP rating：IP30
Work environment：-40℃—45℃
Startup environment：-20℃—45℃
POWER CONSUMPTION
Voltage：AC 100V-240V 50/60HZ
Rated power：300 W
SIZE & WEIGHT
Size：279 × 183 × 457 mm
N.W：11 kgs
Included Accessories
Downloads
Marvel S2P Data Sheet Marvel S2P DMX Chart Marvel S2P User Manual
Buying Guide

Is the Marvel S2P right for you?

The Marvel S2P is a 200W CW LED moving spot for rental houses, venues and production companies that want a solid onboard effects set. It delivers 6900 lm with a 12 to 22° zoom, and carries a 6 + 1 rotating gobo wheel, two 8 + 1 colour wheels, a 6 prism and 5 linear prism option, and two frost filters. Control is DMX512 and RDM with 19, 21 or 25 channels, and the fan is silent with intelligent speed regulation. It weighs 11 kg.

Also in the range

Other CKC Lighting fixtures to look at include the Proxima Hybrid, EvoWash Pro and V2IP. See all m spot.

Need help choosing? Call StageKraft on +61 2 9982 1494 or email sales@stagekraft.com.au.

Related Products

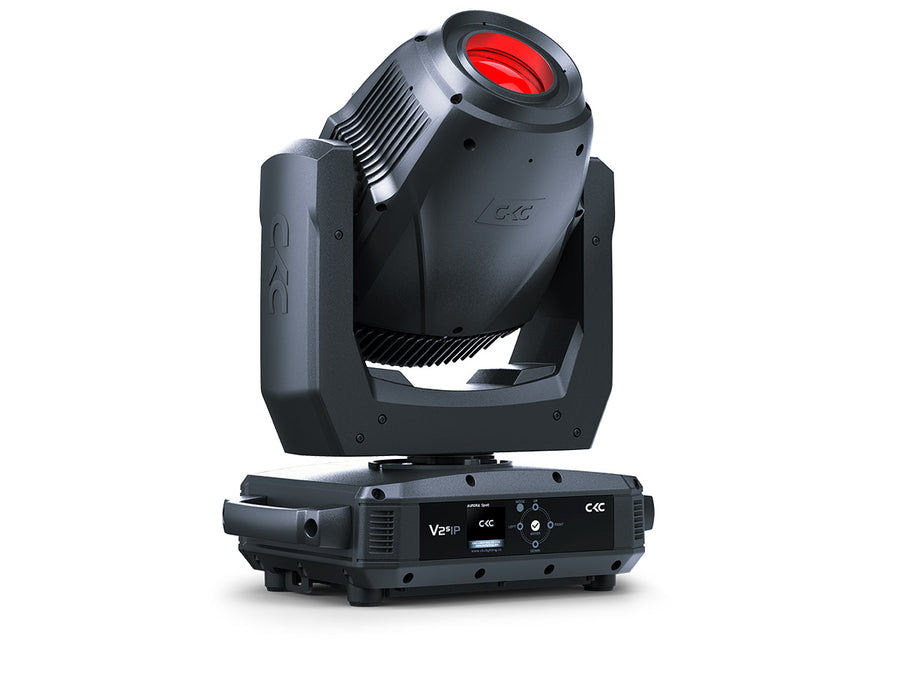

V2IP

V2IP

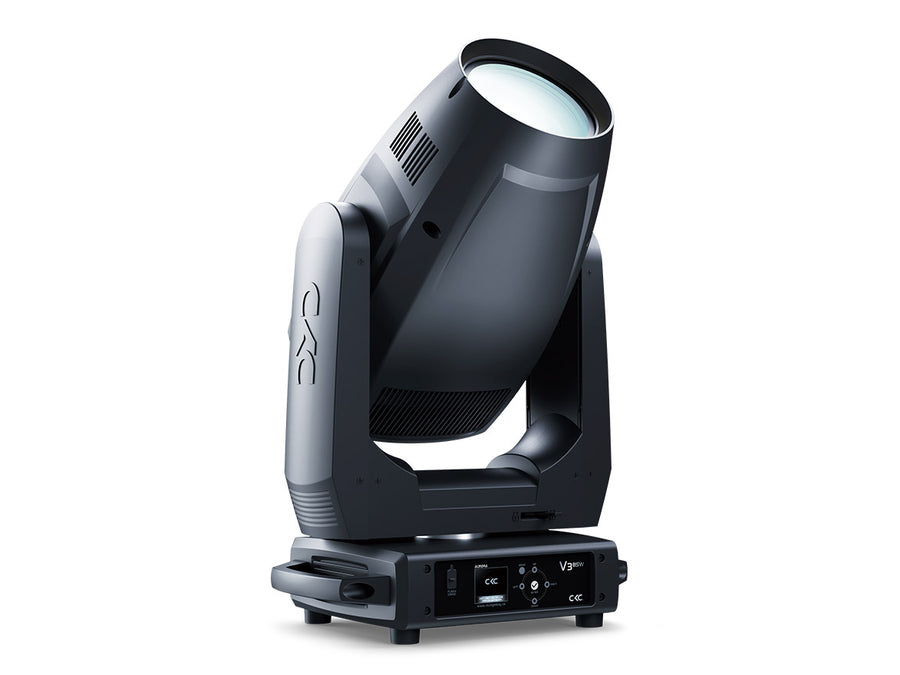

V3 BSW

V3 BSW

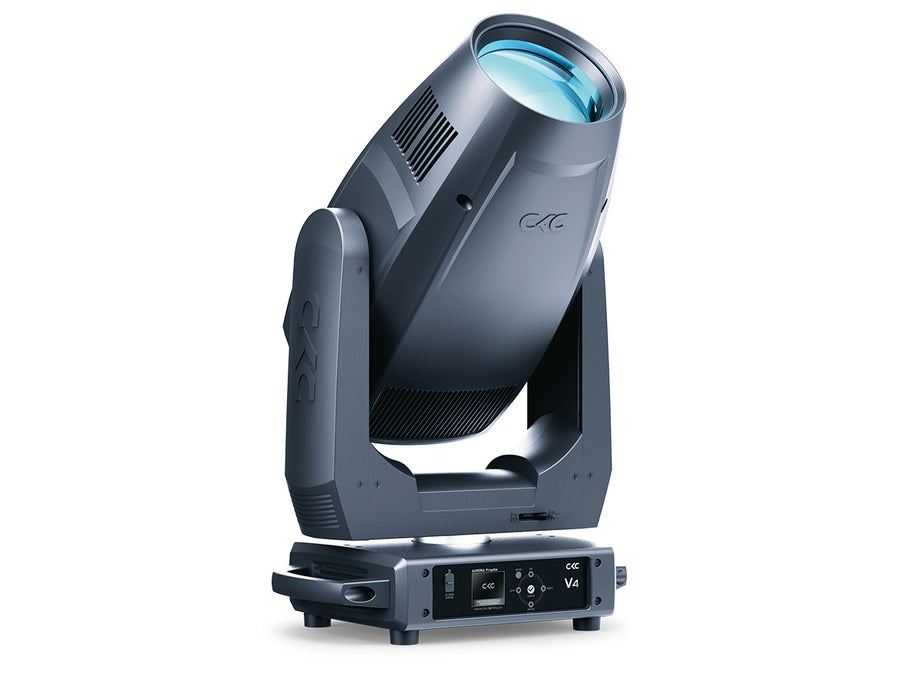

V4

V4

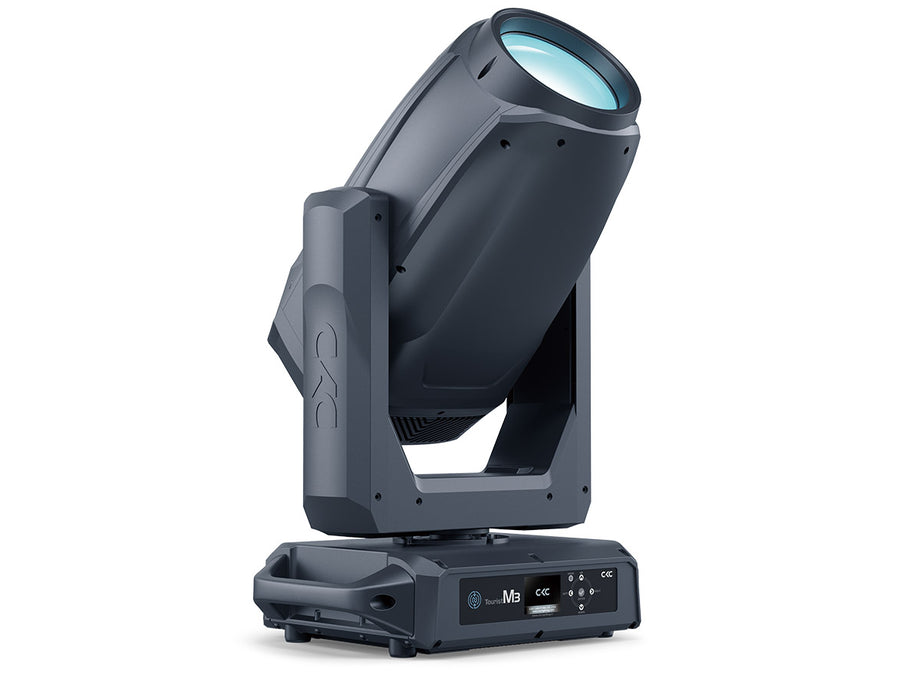

Tourist M3

Tourist M3

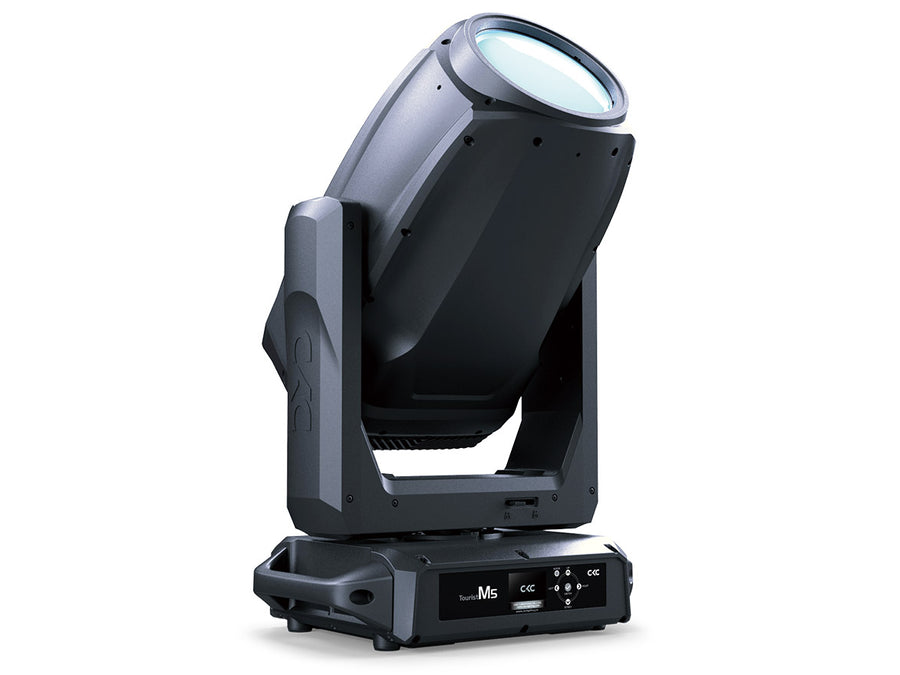

Tourist M5
