DYNAMIC EFFECTS
Color Mixing 19 mechanical Color Wheels,
each with: CTO (open –
approx. 3,800 K) | 18 fix color
filters
Dimmer 0 – 100 %, electronic
MOVEMENT
Pan 540° normal, 650° extended,
16 bit
Tilt 200°, 16 bit
CONTROL & PROGRAMMING
DMX Channels 15 | 22 | 70
Control Modes 3
Protocols DMX (USITT DMX512-A) |
RDM (ANSI/ESTA E1.20) |
Art-Net | sACN | GLP iQ.Mesh |
LumenRadio CRMX
High-Res Channels Dimmer | Pan | Tilt | Color
Wheel
Dimming Curves Linear | Soft | S-Curve
Performance Modes Fast | Normal (Balanced) |
Smooth
Fan Modes Regulated
Setting and
addressing
backlit graphic LCD |
4 Button Menu Navigation |
DMX | RDM | GLP iQ.Mesh
Firmware Update DMX Link via DProg | iQ.Tool |
GLP iQ.Mesh
CONNECTIONS
Power connection Neutrik powerCON True1 In
Signal connection Neutrik XLR 5-Pin In/Out |
Neutrik etherCON In/Out
(failsafe)
ELECTRICAL SPECIFICATIONS
Power input 180 – 240 V AC / 50 – 60 Hz
Power supply unit Auto-ranging electronic
switch mode
Max. Power 2,500 W
THERMAL SPECIFICATIONS
Cooling Type combined convection
and forced air
Temperature range,
Operating -10 °C – 45 °C / 14 °F – 115 °F
Thermal Protection automatic
Total heat
dissipation 8,500 BTU/h
INSTALLATION
Mounting 2x Safety Cable attachment
point | Mounting/Rigging
Baseplate
Orientation ground standing | vertical
hanging
Location Indoor | Outdoor
LIGHT SOURCE
Type White Light LED
Power per pixel: 90 W | total: 1,710 W
Count 19
Lifetime 20,000 h
LED Refresh Rate Optimal | Low | High 1 | High 2
CCT 7,000 K
CRI Default: 70+ |
with High CRI: 90
OPTICAL SYSTEM
Output up to 68,000 lm
Beam angle 1.6°
Peak luminous
intensity
single Beam: 4.7 Mcd | total:
19x 4.7 Mcd
Output aperture
diameter 750 mm / 29.53 in
Output Lenses 19 lenses with full circular
aperature, diameter 750 mm
/ 295.3 in
NoCONSTRUCTION
Housing color Black
Material High-impact flame-resistant
thermoplastic | Aluminum |
Steel
Protection Rating IP 66
Construction
Features
2x Safety Cable attachment
point | Base with sufficiently
stable standing surface | Pan
& Tilt Lock | Base Handles
| 4 crane eyelets at Yoke |
Mechanical Sun Protection |
Trussbar installation Camlock
threads | GLP FX.Port
SHIPPING

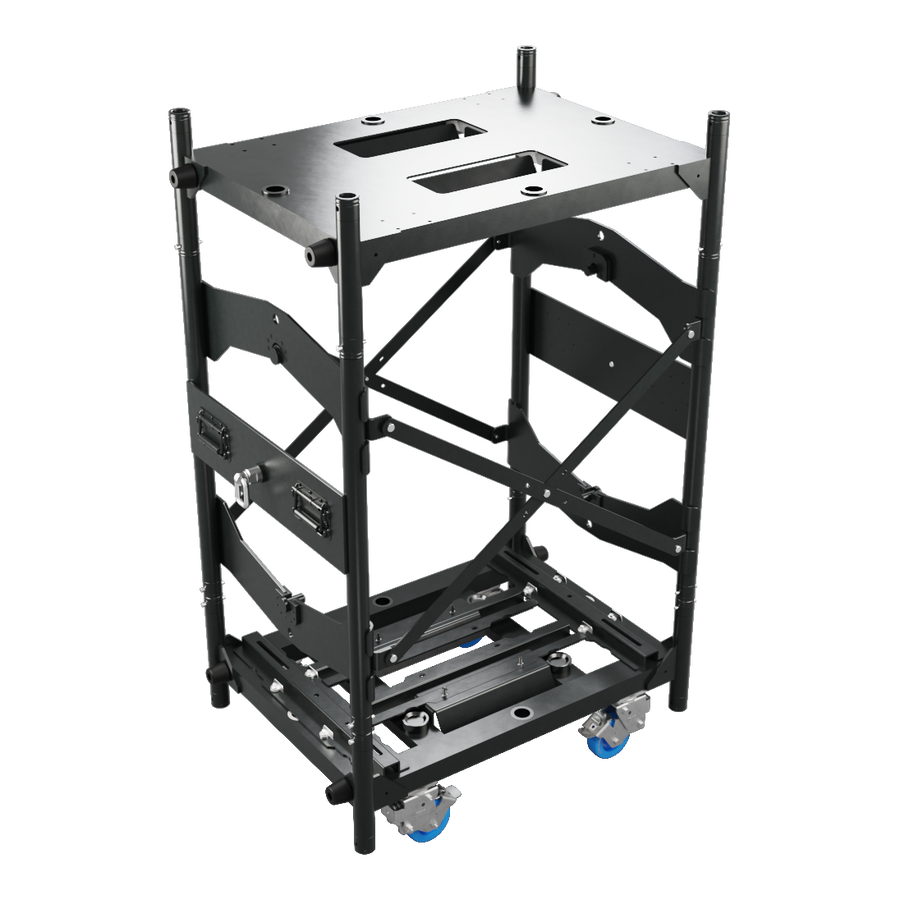

Tourpack 1-way | Flightcase | Rigging
Bracket
DIMENSIONS & WEIGHT
Height 1,248 mm / 49.1 in
Width 1,043 mm / 41.1 in
Depth 789 mm / 31.1 in
Weight netto 195 kg / 430 lbs
ARTICLE NUMBERS
MAD MAXX 7992"
