GLP

JDC Burst 1

SKU: 7451

The GLP JDC Burst 1 is a hybrid LED strobe fixture that combines a powerful white beam line with a high-output RGBW colour plate. The beam line delivers 4900 TLO output and is divided into 12 independently controllable segments, while the RGBW colour plate produces 33800 TLO across 48 plate segments. This design allows the fixture to operate as a strobe, blinder, colour wash, pixel effect and moving visual element from one unit. A motorised 185° tilt range adds movement to strobe and plate effects, allowing bursts of light to be swept across the stage or audience area. With a 1400W power rating, IP65 protection and 14 kg housing, the JDC Burst 1 is suited to touring and outdoor event use. The fixture is supplied with a DRX Sleeve.

Pay in 4 interest-free installments of $133.12 with

Key Features

Hybrid LED strobe design
4900 TLO beam line
33800 TLO RGBW colour plate
12 beam segments
48 plate segments
185° tilt movement
1400W power rating
IP65-rated housing
14 kg body
Supplied with DRX Sleeve
Specifications

LIGHT SOURCE Type Beam Plate White Strobe LED RGBW Multicolor Chip LED Count Beam Plate 144 1,200 Power Beam Plate Total 700 W 700 W 1,400 W OPTICAL SYSTEM Total Output Beam Plate 49,000 lm 33,800 lm Light Distribution Beam Plate 150° / 90° cutoff angle 110° beam angle, 160° field angle Peak Luminous Intensity Beam Plate 34 kcd 12.3 kcd DYNAMIC EFFECTS Dimmer 0 – 100%, 16 bit CTC 6,100 K (± 200 K) MOVEMENT Tilt 185°, 16 bit Tilt Movement Speed super fast 0.25 s (Normal) CONTROL & PROGRAMMING DMX Channels 19 | 37 | 87 | 135 | 231 | 105 | 153 | 249 | 68 | 62 Control Modes 10 Protocols DMX (USITT DMX512-A) | RDM (ANSI/ESTA E1.20) | Art-Net | sACN | GLP iQ.Mesh High-Res Kanäle Dimmer | Tilt Dimming Curves Linear | Soft | S-Curve Performance Modes Fast | Normal | Smooth White Points Plate: 6,500 K | 8,000 K | 5,700 K | Off (RAW) White Beam Normal | Expanded Fan Modes Regulated | High | Medium | Low | Minimum Setting and addressing Control panel with backlit graphic display | 4 Button Menu Navigation | DMX | RDM | Stand Alone Scene Others 2x Pattern FX Engine | Multi-patch for media servers Firmware Update DMX Link via DProg | iQ.Mesh CONNECTIONS Power connection Neutrik powerCON TRUE1 In/Out Signal connection Neutrik XLR 5-Pin In/Out | etherCON In/Out A & B (failsafe) ELECTRICAL SPECIFICATIONS Power input 100 – 240 V AC / 50 – 60 Hz Power supply unit Auto-ranging electronic switch-mode Max. Power (230 V) 1,400 W EEC A EEI 0.25 Ec 1,400 kWh/1,000h THERMAL SPECIFICATIONS Cooling Type combined convection and forced air Thermal protection automatic Temperature range-10 °C / 14 °F to 45 °C / 113 °F INSTALLATION Mounting 3 pairs of 1/4-turn locks (2 bottom base plate, 1 yoke side) | Safety cable attachment point Orientation Any Location Indoor | Outdoor CONSTRUCTION Housing Color Black Housing Material High-impact flameresistant thermo-plastic | Aluminum | Steel Metal Plates Protection Rating IP 65 Construction Features Tilt-Lock-System | Alignment System | Hand Gaps at Base and Head | Vertical hanging Camlock Prepared for head accesories DIMENSIONS & WEIGHT Height (head home) with legs without legs 271.3 mm / 10.7 in 260 mm / 10.2 in Height (head vertical) with legs without legs 305 mm / 12 in 293.7 mm / 11.6 in Width across yoke 412 mm / 16.2 in Depth head vertical 172 mm / 6.7 in Weight netto 14 kg / 30.8 lbs Shipping Single fixture cartboard; DRX Sleeve (incl.) Tourpack 4-way Flightcase ARTICLE NUMBERS JDC Burst 1 7451 DRX Sleeve for JDC Burst 1 (incl.) 56800
Included Accessories

DRX Sleeve
Downloads
JDC Burst 1 DMX Chart JDC Burst 1 Cut Sheet JDC Burst 1 User Manual JDC Burst 1 DMX Chart JDC Burst 1 Photometrics JDC Burst 1 CAD
Buying Guide

Is the JDC Burst 1 right for you?

The GLP JDC Burst 1 suits touring crews and event productions that want strobe, blinder, colour wash and pixel effects from a single fixture. A white beam line split into 12 segments sits alongside a 33,800 lm RGBW plate with 48 segments, and the 185° tilt lets bursts of light sweep across the stage or audience area. IP65 protection and a 14 kg body make it suited to outdoor events, and a DRX Sleeve is supplied with the fixture.

Also in the range

Also from GLP, see the JDC-2 IP, JDC LINE 500 and JDC LINE 1000. See all effect lights.

Need help choosing? Call StageKraft on +61 2 9982 1494 or email sales@stagekraft.com.au.

Related Products

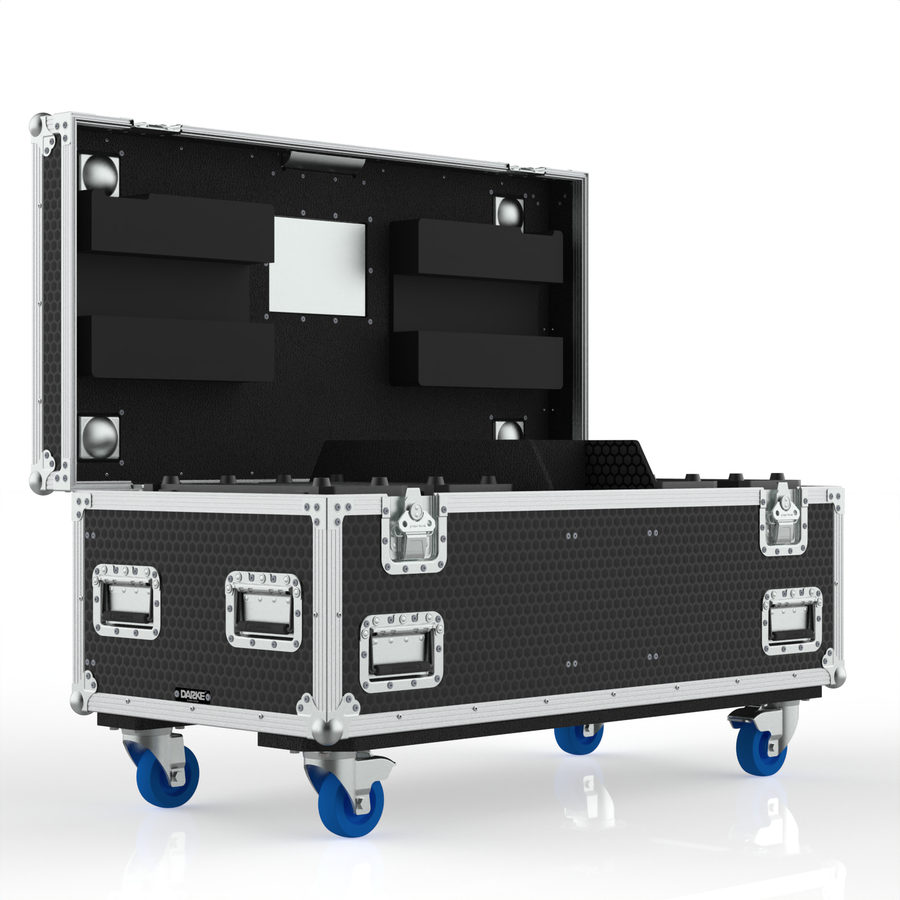

DARKE Burst Flight Case – 4 Way

DARKE Burst Flight Case – 4 Way

JDC-2 IP

JDC-2 IP

TWYN

TWYN

Creos

Creos

AK M Blast

AK M Blast

AK Storm Bar

AK Storm Bar

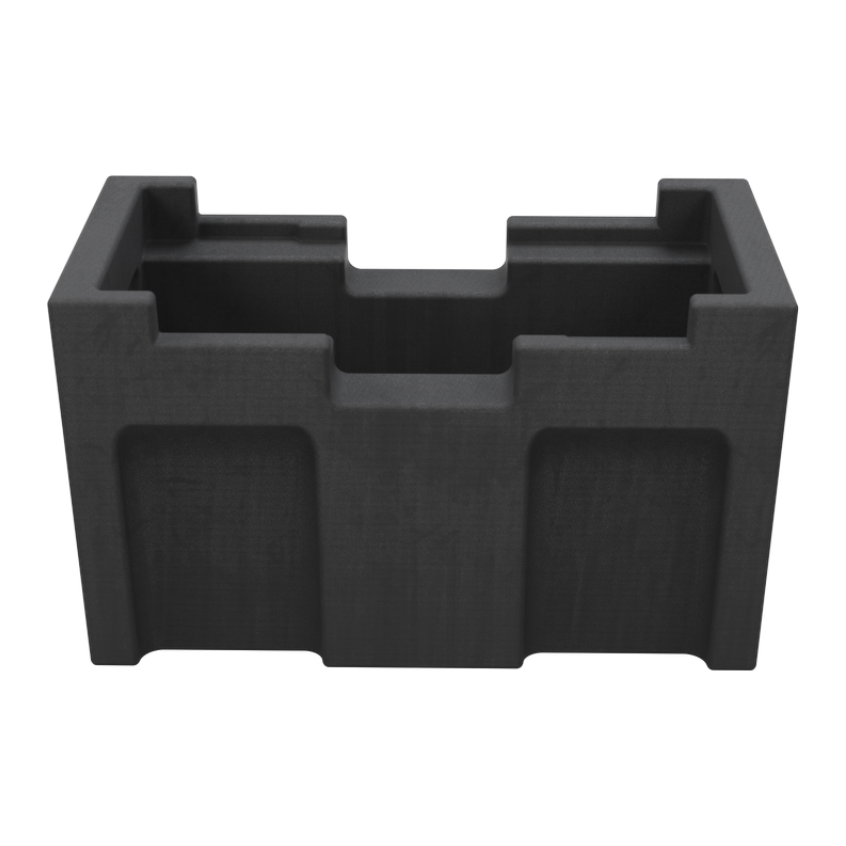

DRX Sleeve
