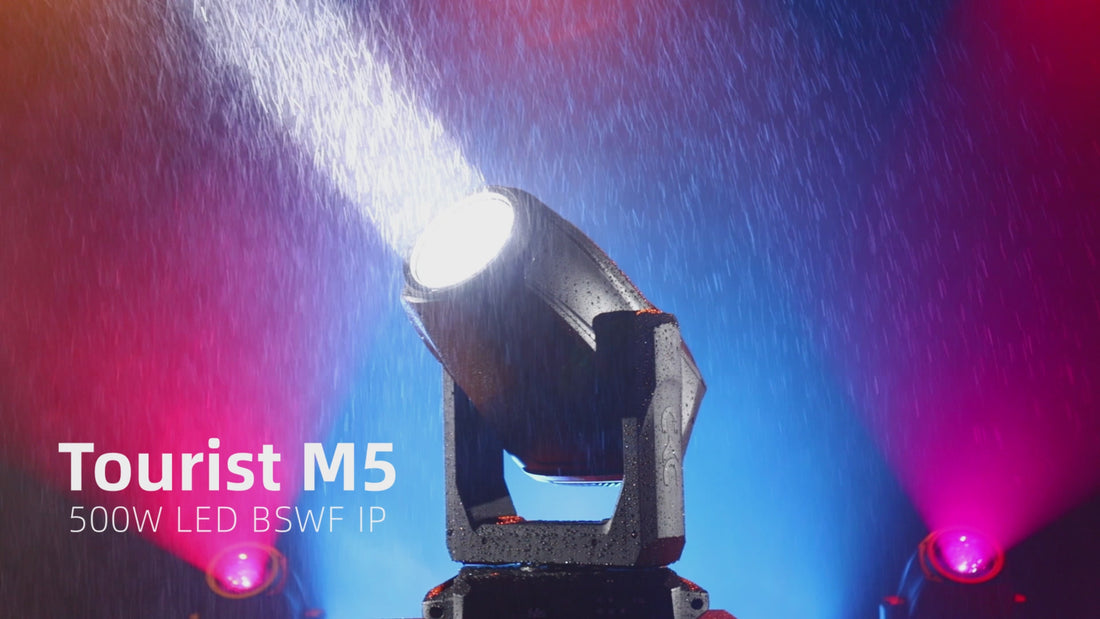

Tourist M5

Source: 500W CW LED
Output：23000 Lm（CRI:72）
Beam angle：3.5 ~ 53°
Beams, Spot, Wash, Frame
Rotation gobo wheel：7 + 1
Fixed gobo wheel：8 + 1
Color wheel：7+1 / CMY + CTO
Frost：2，1 light + 1 heavy
Prism: 6 Prism + 8 Prism(Optional: 6 Linear+6 Prism)
With iris, Animation
IP rating: IP66

OPTIC
Source: 500W CW LED
Output：23000 Lm
Field angle：3.5~53°
CCT：6500 K
CRI：72（with CRI 90 filter）
Lux：30500 Lux@10m/3.5°
Source lifetime：>20000 H
EFFECT
Strobe：1～25Hz
LED refresh rate：1200Hz - 25KHz
Rotation gobo wheel：7 + 1
Gobo: Ф23 mm, lmage: Ф 15 mm, thickness: 1.1mm
Fixed gobo wheel：8 + 1
Color wheel：7 + 1
Linear CMY
Linear CTO（2400~6500K）
Prism：6 Prism + 8 Prism (Optional: 6 Linear+6 Prism)
Frost：2，1 light + 1 heavy
Framing：With 4 blade, can achieve fast and smooth cutting. The framing direction and angle of each blade can be controlled separately, and the single brade can realize complete beam closing. The whole framing module can be rotated by ±60°
With iris, Animation
CONTROL & PROGRAM
Channel：38 / 56 CH
Protocal：DMX512, RDM, ArtNet, sACN
Data connector：3 PIN (or 5 PIN) XLR，RJ45
Display：2.8 inches touch screen, the operation panel has a rechargeable battery that allows you to access the menu to set the address code and make other settings without power on
NFC: The lighting fixtures do not require power on and can be directly set up, diagnosed, and perform other functions through the CKC app
SOFTWARE
Via USB & DMX signal to update
Silent fan, intelligent speed regulation
Intelligent temperature protection to ensure LED service life
PAN & TILT MOVEMENT
Pan： Infinite rotation (360° )
Tilt：270° 8bit/16bit
HOUSING
Aluminum alloy structure + plastic (VO)
Fan cooling
Resistant to salt corrosion
OTHER
IP rating：IP66
Work environment：-40℃—45℃
Startup environment：-20℃—45℃
POWER CONSUMPTION
Voltage：AC 100V-240V 50/60HZ
Rated power：994 W
Power factor：0.99
SIZE & WEIGHT
Size：398 × 281 × 667 mm
N.W：30 kgs
Carton Size：825 × 515 × 455 mm
G.W：37 kgs
