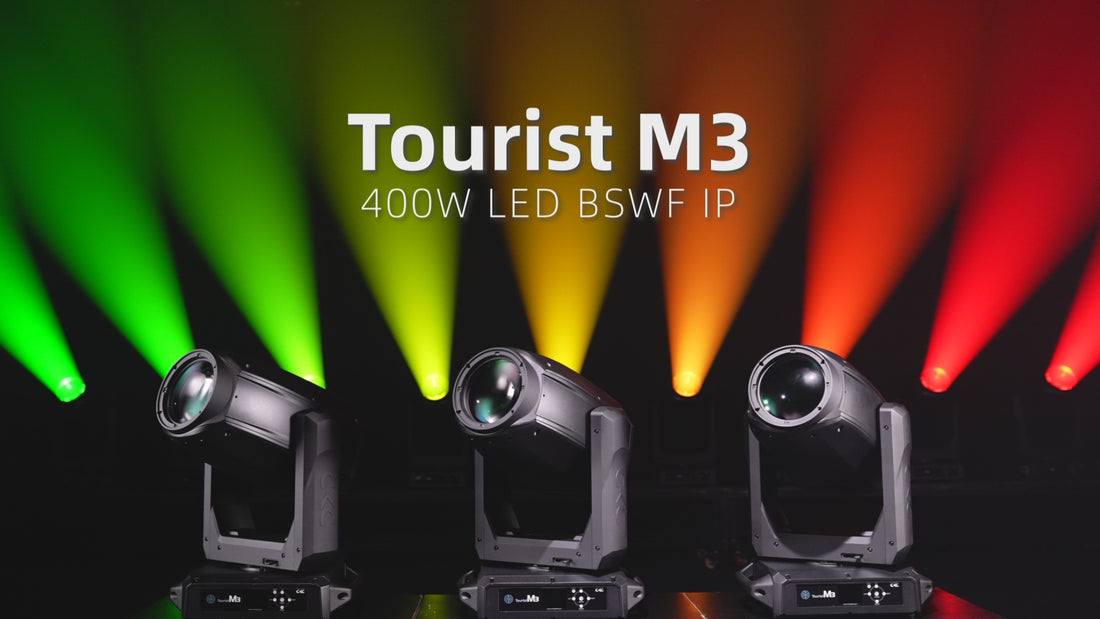

Tourist M3

Source: 400W CW LED
Output：17000 Lm（CRI:72）
Beam angle：3~ 53°
Beams, Spot, Wash, Frame
Rotation gobo wheel：7 + 1
Color wheel：8+1 / CMY + CTO
Frost：2，1 light + 1 heavy
Prism: 6 Prism + 6 Linear
With iris, Animation
IP rating: IP66

OPTIC
Source: 400W CW LED
Output：17000 Lm
Field angle：3~53°
CCT：6500 K
CRI：72（with CRI 90 filter）
Lens diameter：140 mm
Source lifetime：>20000 H
EFFECT
Strobe：1～25Hz
LED refresh rate：900Hz - 25KHz
Rotation gobo wheel：7 + 1
Gobo: Ф16.5 mm, lmage: Ф 12 mm, thickness: 1.1mm
Color wheel：8 + 1
Linear CMY
Linear CTO（2600~6500K）
Prism：6 Prism + 6 Linear
Frost：2，1 light + 1 heavy
Framing：With 4 blade, can achieve fast and smooth cutting. The framing direction and angle of each blade can be controlled separately, and the single brade can realize complete beam closing. The whole framing module can be rotated by ±60°
With iris, Animation
CONTROL & PROGRAM
Channel：38 / 52 CH
Protocal：DMX512, RDM, Artnet, sACN
Data connector：3 PIN (or 5 PIN) XLR，RJ45
Display：2.8 inches touch screen, the operation panel has a rechargeable battery that allows you to access the menu to set the address code and make other settings without power on
NFC: The lighting fixtures do not require power on and can be directly set up, diagnosed, and perform other functions through the CKC app
SOFTWARE
Via USB & DMX signal to update
Silent fan, intelligent speed regulation
Intelligent temperature protection to ensure LED service life
PAN & TILT MOVEMENT
Pan：540° or 630° 8bit/16bit
Tilt：270° 8bit/16bit
HOUSING
Aluminum alloy structure + plastic (VO)
Fan cooling
OTHER
IP rating：IP66
Work environment：-40℃—45℃
Startup environment：-20℃—45℃
POWER CONSUMPTION
Voltage：AC 100V-240V 50/60HZ
Rated power：677W
SIZE & WEIGHT
Size：395 × 255 × 634 mm
N.W：24.1 kgs
