CKC Lighting

Pinspot 40

SKU: CKC-PINSPOT40

Source: 40W RGBW LED（Optional：WW / CW）
Beam angle：4°（Optional：10° / 40°）
Field angle：8°
Output：900 Lm
Source lifetime：>20000 H
Uniform RGBW color mixing system and rainbow effect
IP rating：IP30
Size：184 × 182 × 233 mm
N.W：2.1 kgs

Pay in 4 interest-free installments of $133.12 with

Key Features

Source：40W RGBW LED（Optional：WW / CW）
Beam angle：4°（Optional：10° / 40°）
Field angle：8°
Specifications

OPTIC
Source：40W RGBW LED（Optional：WW / CW）
Beam angle：4°（Optional：10° / 40°）
Field angle：8°
Output：900 Lm
Source lifetime：>20000 H
COLOR
Uniform RGBW color mixing system and rainbow effect
Create unlimited movement, infinite color changes
EFFECT
Strobe：1 ~ 25 Hz
Dimmer Mode：2 kinds
Dimmer Curve：4 kinds
Built in effects：3 kinds
CONTROL & PROGRAM
Channel：1 / 4 / 6 / 7 CH
Protocal：DMX512，RDM
Data connection：3 PIN (or 5 PIN) XLR
Display：O LED display
SOFTWARE
Via DMX signal to update
Intelligent temperature protection to ensure LED service life
HOUSING
Die-cast aluminum structure
Natural heat dissipation
OTHER
IP rating：IP30
Work environment：-40℃—45℃
Startup environment：-20℃—45℃
POWER CONSUMPTION
Voltage：AC 100V-240V 50/60HZ
Rated power：48 W
SIZE & WEIGHT
Size：184 × 182 × 233 mm
N.W：2.1 kgs
Included Accessories
Downloads
Pinspot 40 DMX Chart Pinspot 40 User Manual
Buying Guide

Is the Pinspot 40 right for you?

The Pinspot 40 is a 40W RGBW LED pinspot for designers and venues that need a tight, controllable beam from a compact fixture. The standard beam angle is 4°, with 10° and 40° optional, and WW or CW sources are also available. Uniform RGBW colour mixing and a rainbow effect handle colour work, while 1, 4, 6 or 7 channel modes over DMX512 and RDM suit different programming setups. It weighs 2.1 kg and uses a die-cast aluminium housing.

Also in the range

Related options include the Pinspot 40IP and the TW Dot Pinspot. See all pinspot.

Need help choosing? Call StageKraft on +61 2 9982 1494 or email sales@stagekraft.com.au.

Related Products

Pinspot 40IP

Pinspot 40IP

X5 Dot

X5 Dot

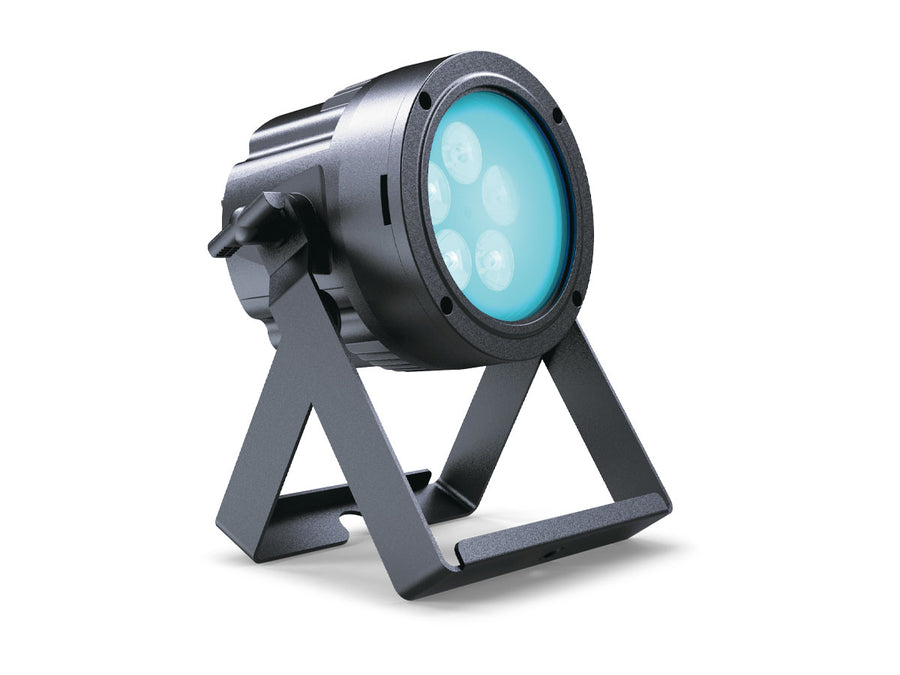

L Par 5
