CKC Lighting

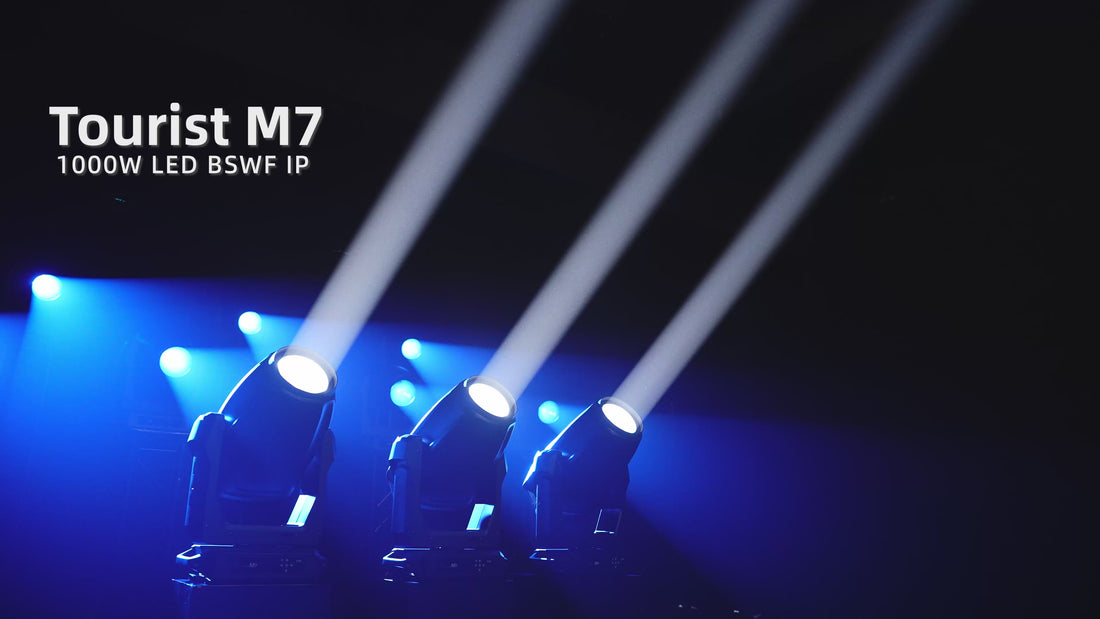

Tourist M7

SKU: CKC-TOURIST M7

Source: 1000W CW LED
High Brightness Mode: 43000 Lm
High CRI Mode: 27000 Lm
CRI: 72 / 95 （Freedom to switch）
R9：95
Field angle： 3.5～52°
CCT：6500 K
Rotation gobo:
Wheel 1 (7 + 1) / Wheel 2 (7 + 1)
Color wheel：6+ 1
Linear CMY
Linear CTO（2400~6500K）
Prism：4 prism+6 linear
Frost: 2
Framing: With 4 blade, can achieve fast and smooth cutting. The framing direction and angle of each blade can be controlled separately, and the each brade can realize complete beam closing. The whole cutting module can be rotated by ±95°
Animation + With iris
Pan: Infinite rotation (360° )
Tilt: 270° 8bit/16bit
IP rating: IP66
Size：466×285×745 mm
N.W：36.9 kgs

Pay in 4 interest-free installments of $133.12 with

Key Features

Source: 1000W CW LED
Field angle：3.5～52°
CRI: 72 / 95 （Freedom to switch）
High Brightness Mode: 43000 Lm
High CRI Mode: 27000 Lm
Beams, Spot, Wash, Frame
Rotation gobo: Wheel 1 (7 + 1) Wheel 2 (7 + 1)
Color wheel：6 + 1 / CMY / CTO
Prism：4 prism+6 linear
Lightweight alloy shell, low overall weight
Specifications

OPTIC
Source: 1000W CW LED
High Brightness Mode: 43000 Lm
High CRI Mode: 27000 Lm
CRI: 72 / 95 （Freedom to switch）
R9：95
Field angle： 3.5～52°
CCT：6500 K
Source lifetime：>20000 H
EFFECT
Strobe：1～25Hz
Rotation gobo:
Wheel 1 (7 + 1) / Wheel 2 (7 + 1)
Rotation gobo wheel 1：Gobo outer diameter 23mm±0.2mm ，Internal diameter 19mm，Thickness 1.1mm
Rotation gobo wheel 2：Gobo outer diameter 23mm±0.2mm ，Internal diameter 17mm，Thickness 1.1mm
Color wheel：6+ 1
Linear CMY
Linear CTO（2400~6500K）
Prism：4 prism+6 linear
Frost: 2
Framing: With 4 blade, can achieve fast and smooth cutting. The framing direction and angle of each blade can be controlled separately, and the each brade can realize complete beam closing. The whole cutting module can be rotated by ±95°
Animation + With iris
CONTROL & PROGRAM
Channel：41 / 57CH
Protocal：DMX512, RDM, Artnet, sACN
Data connector：3 PIN (or 5 PIN) XLR，RJ45
Display: 2.8 inches touch screen, the operation panel has a rechargeable battery that allows you to access the menu to set the address code and make other settings without power on
NFC: The lighting fixtures do not require power on and can be directly set up, diagnosed, and perform other functions through the CKC app
SOFTWARE
Via USB & DMX signal to update
Static waterproof fan intelligent speed control
Intelligent temperature protection to ensure LED service life
PAN & TILT MOVEMENT
Pan: Infinite rotation (360° )
Tilt: 270° 8bit/16bit
HOUSING
Aluminum alloy structure + plastic (VO)
Fan cooling
Resistant to salt corrosion
OTHER
IP rating: IP66
Work environment: -40℃ ~ 45℃
Startup environment: -20℃ ~ 45℃
POWER CONSUMPTION
Voltage: AC 100V~240V 50/60Hz
Rated power：1435W
Power factor：0.99
SIZE & WEIGHT
Size：466×285×745 mm
N.W：36.9 kgs
Carton size：925×585×485 mm
G.W：45.3 kgs

Included Accessories
Downloads
Tourist M7 Data Sheet Tourist M7 DMX Chart Tourist M7 DWG
Buying Guide

Is the Tourist M7 right for you?

The Tourist M7 is a 1000W LED moving profile for productions that want beam, spot, wash and frame looks from one fixture. It offers a 43000 lm High Brightness mode and a 27000 lm High CRI mode, with CRI switchable between 72 and 95 and R9 at 95. Four-blade framing with ±95° module rotation, two gobo wheels, linear CMY, linear CTO and an iris give designers a full effects toolset. The IP66 rating and salt corrosion resistant housing suit outdoor conditions, with a working range of -40 to 45 degrees C.

Also in the range

For other sizes in the series, compare the Tourist M5 and Tourist M9, or look at the GLP S500 HO Profile. See all m profile.

Need help choosing? Call StageKraft on +61 2 9982 1494 or email sales@stagekraft.com.au.

Related Products

Tourist M5

Tourist M5

Tourist M6

Tourist M6

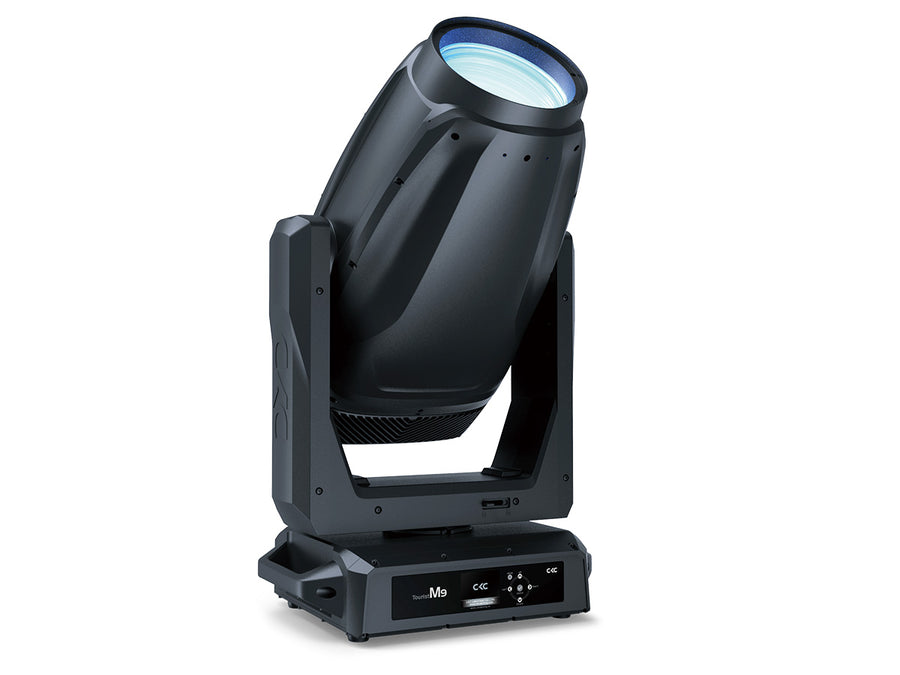

Tourist M9
