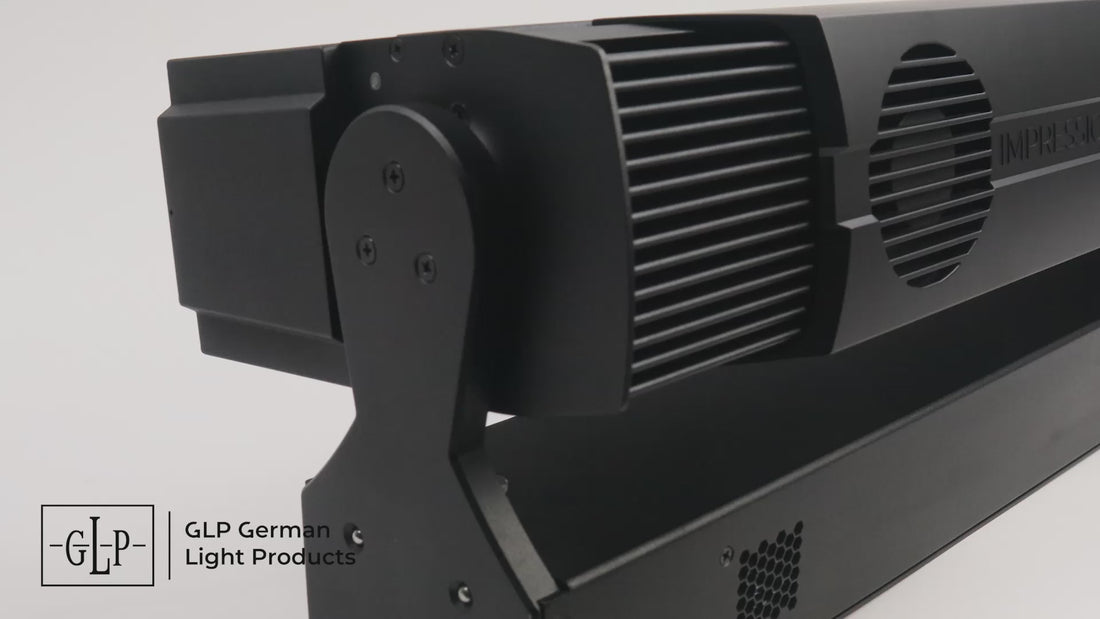

X5 Bar 1000

• 18 x 40W RGBL LEDs
• 3.5°-60° zoom
• Pixel control

LIGHT SOURCE Type RGBL LED Power per pixel: 40 W Count 18 Lifetime 50,000 h LED Refresh Rate Low: 550 Hz Optimal: dynamic PWM Algorithm High 1: 4,600 Hz High 2: 13,000 Hz Values rounded. For detailed information, contact GLP Support CCT 6,500 K CRI 8,000 K: 87 | 6,500 K: 86.7 | 3,200 K: 84.8 TLCI 8,000 K: 90 | 6,500 K: 88.5 | 3,200 K: 74.1 TM-30-15 Rf/Rg 6,500 K: 87 / 105 3,200 K: 85 / 110 OPTICAL SYSTEM Output up to 7,500 lm Min. Zoom 4.4° Max. Zoom 63° Zoom Ratio 1:17 Front lenses 18 square lenses: 48 x 48 mm / 1.88 x 1.88 in with 980 x 120 mm / 38.58 x 4.72 in aperature DYNAMIC EFFECTS Color mixing RGB | RGBL | x;y CTC 2,500 – 10,000 K CQC High Output (HO) High Quality (HQ) Desaturation Color wheel virtual, 64 LEE referenced colors Magenta/Green-Shift yes Tungsten Simulation 8x linked to fix CCT | 8x relative to Colormix Pattern Effects 50 dynamic pattern macros with special effects Color Mix Priority different Layer Priority settings Zoom 3.5° – 60° Zoom Speed super fast zoom mechanics Dimmer 0 – 100 %, 16 bit Shutter variable speed, with effects MOVEMENT Tilt 205°, 16 bit CONTROL & PROGRAMMING DMX Channels M1: CH20 | M2: CH33 | M3: CH48 | M4: CH84 | M5: CH63 | M6: CH81 Control Modes 6 Protocols DMX (USITT DMX512-A) | RDM (ANSI/ESTA E1.20) | Art-Net | sACN | GLP iQ.Mesh | LumenRadio CRMX (optional) High-Res Channels Pan | Tilt | Intensity | Colormix Dimming Curves Linear | Soft | S-Curve Performance Modes Fast | Normal (Balanced) | Smooth Fan Modes Regulated | High | Medium | Low | Minimum Subfixture Mode Normal | Independent White Points 8,000 K | 5,600 K | 4,200 K | 3,200 K PWM Low | Optimal | High 1 | High 2 Setting and addressing Backlit graphic LCD | 4 Button Menu Navigation | DMX | RDM | iQ.Service App Others 1 Scene Stand Alone | Art-Net/ sACN Node | Data Conversion | GLP iQ.Mesh | FPO Port (Flexible Protocol Option) Firmware Update DMX Link via DProg | GLP iQ.Mesh | GLP iQ.Tool CONNECTIONS Power connection Neutrik powerCON True1 In/Out Signal connection Neutrik XLR 5-Pin In/Out | Neutrik etherCON port A & B (failsafe) | GLP FX.Port ELECTRICAL SPECIFICATIONS Power input 100 – 240 V AC / 50 – 60 Hz Power supply unit Auto-ranging electronic switch mode Max. Power 750 W THERMAL SPECIFICATIONS Cooling Type combined convection and forced air Temperature range, Operating 5 °C – 45 °C / 40 °F – 115 °F Thermal Protection automatic Total heat dissipation 2,600 BTU/hr INSTALLATION Mounting 4 pairs of 1/4-turn locks for two rigging/installation brackets | 2x safety cable attachment point Orientation Any Location Indoor CONSTRUCTION Housing color Black Material High-impact flame-resistant thermoplastic | Aluminum | Steel Construction Features Tilt-Lock-System | Alignment System | Handgaps for carrying | Threads for external accessory | Smart Slide-In Filter System SHIPPING Single fixture Carboard Tourpack 3-way DIMENSIONS & WEIGHT Height 294 mm / 11.58 in Width across yoke 1,000 mm / 39.37 in Depth 110 mm / 4.33 in Weight netto 20.2 kg / 44.5 lbs ARTICLE NUMBERS impression X5 Bar 1000 7888 Beam Shaper 5°x30° 87184 Diffuser 30° 87185 Soft Diffuser 2° 87183

• 2 Brackets
• Power cable
