CKC Lighting

Fresnel 150TW

SKU: CKC-Fres 150TW

Source: 180W RGBLA LED
Output:7200 Lm
Zoom angle:10 ~ 48°
CCT:2400K~8000K
CRI:94
R9:95
IP rating:IP30
Size:344 × 274 × 398 mm
N.W:7.3 kgs

Pay in 4 interest-free installments of $133.12 with

Key Features

Source:180W RGBLA LED
Output:7200 Lm
Zoom angle:10 ~ 48°
CCT:2400K ~ 8500K
CRI:94

Specifications

OPTIC
Source:180W RGBLA LED
Output:7200 Lm
Zoom angle:10 ~ 48°
CCT:2400K~8000K
CRI:94
R9:95
Source lifetime:>20000 H
EFFECT
Strobe:1 ~ 25Hz
LED Refresh Frequency:0.9 ~ 25 KHz
CONTROL & PROGRAM
Channel:1 / 6 / 11 / 18 / 9 / 14 CH
Protocal:DMX512, RDM
Data connector:3 PIN XLR(Optional:5 PIN XLR)
Display:OLED display
SOFTWARE
Via DMX signal to update
Silent fan, intelligent speed regulation
Intelligent temperature protection to ensure LED service life
UHOUSING
Aluminum alloy structure
Fan cooling
OTHER
IP rating:IP30
Work environment:-40℃—45℃
Startup environment:-20℃—45℃
POWER CONSUMPTION
Voltage:AC 100V-240V 50/60HZ
Rated power:205 W
SIZE & WEIGHT
Size:344 × 274 × 398 mm
N.W:7.3 kgs

Included Accessories
Buying Guide

Is the Fresnel 150TW right for you?

The CKC Lighting Fresnel 150TW is a 180W RGBLA LED fresnel with 7200 Lm output and a 10 to 48° zoom, so one fixture can cover both tight and wide beam angles. CRI 94 and R9 95 make it a sound choice for designers who need solid colour rendering. A silent fan with intelligent speed regulation suits quiet rooms, and DMX512 and RDM control with an OLED display keep setup and addressing simple. The aluminium alloy body weighs 7.3 kg.

Also in the range

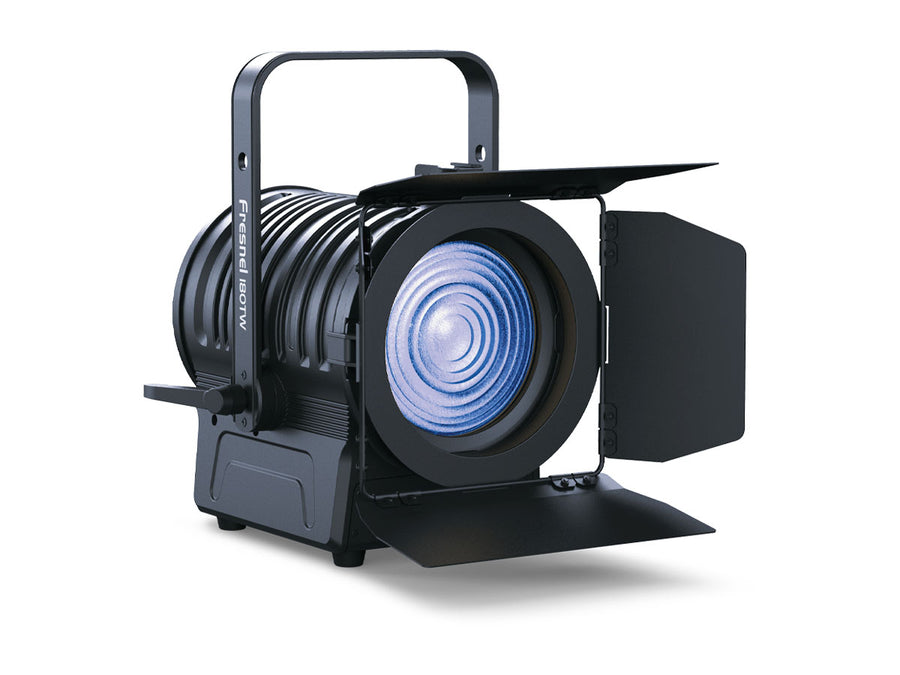

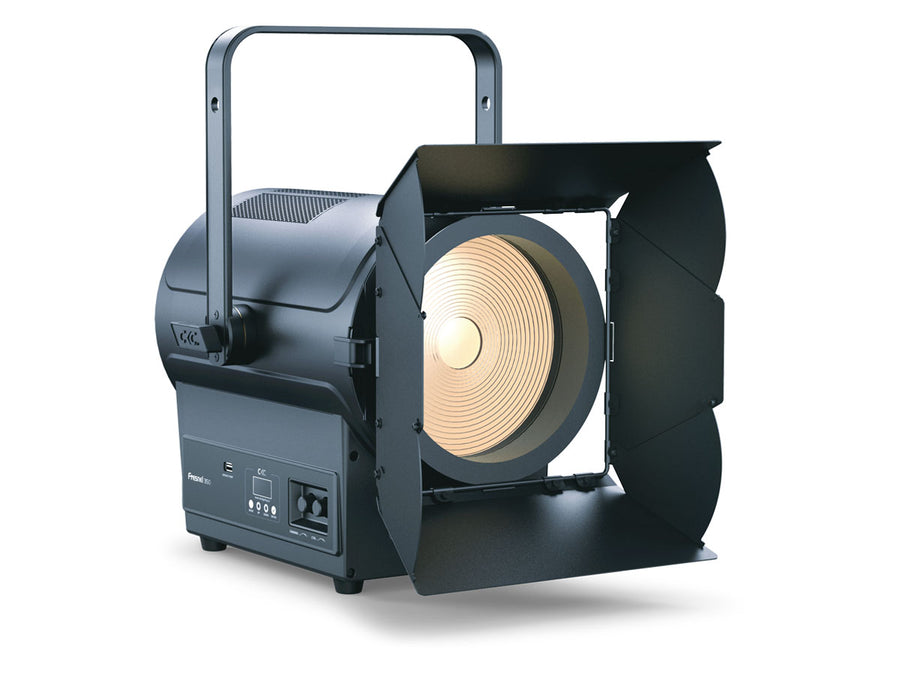

Also look at the Fresnel 80TW, Fresnel 180TW and Fresnel 350TW if you need a different output in the same series. See all fresnel.
