CKC Lighting

Fresnel 350WW

SKU: CKC-Fres 350

Source: 350W WW LED
Output:11000 Lm
Zoom angle:11° ~ 68°
CCT:3000K (Optional: 5600K)
CRI:96
R9:97
TLCI:97
TM-30:Rf:92,Rg:102
IP rating:IP30
Size:329 × 383 × 455 mm
N.W:11.5 kgs

Pay in 4 interest-free installments of $133.12 with

Key Features

Output:11000 Lm
CCT:3000K (optional:5600K)
Zoom angle:11° ~ 68°
CRI:96
TLCI:97
TM-30:Rf:92,Rg:102

Specifications

OPTIC
Source:350W WW LED
Output:11000 Lm
Zoom angle:11° ~ 68°
CCT:3000K (Optional: 5600K)
CRI:96
R9:97
TLCI:97
TM-30:Rf:92,Rg:102
Source lifetime:>20000 H
EFFECT
Strobe:1 ~ 25 Hz
Dimmer Curve:4 kinds
CONTROL & PROGRAM
Channel:2 / 3 / 4 / 6 CH
Protocal:DMX512, RDM
Data connector:3 PIN (or 5 PIN) XLR
Display:OLED display
SOFTWARE
Via USB & DMX signal to update
Silent fan, intelligent speed regulation
Intelligent temperature protection to ensure LED service life
HOUSING
Aluminum alloy structure
Fan cooling
OTHER
IP rating:IP30
Work environment:-40℃—45℃
Startup environment:-20℃—45℃
POWER CONSUMPTION
Voltage:AC 100V-240V 50/60HZ
Rated power:350W
SIZE & WEIGHT
Size:329 × 383 × 455 mm
N.W:11.5 kgs

Included Accessories
Buying Guide

Is the Fresnel 350WW right for you?

The CKC Lighting Fresnel 350WW is a 350W warm white LED Fresnel for designers and venues who care about colour rendering. It delivers 11000 lm at 3000K, with CRI 96, R9 97 and TLCI 97, and a 5600K version is optional. The zoom runs from 11 to 68 degrees, and the fan is silent with intelligent speed regulation. Control is via DMX512 and RDM, with four dimmer curves and an aluminium alloy housing.

Also in the range

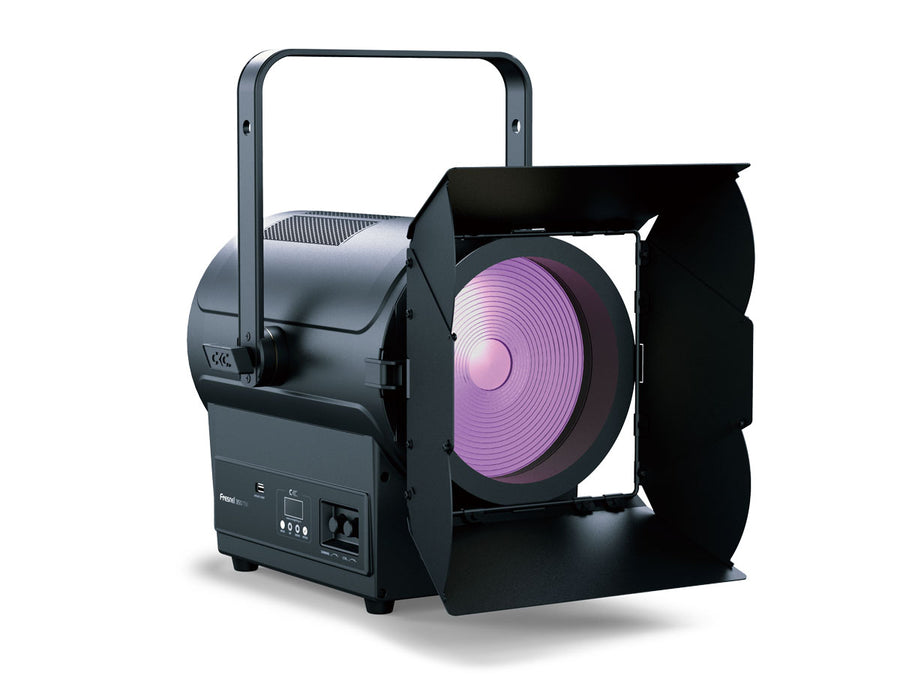

For other CKC Lighting Fresnels, see Fresnel 350TW, Fresnel 180TW and Fresnel 60WW. See all fresnel.

Need help choosing? Call StageKraft on +61 2 9982 1494 or email sales@stagekraft.com.au.
