CKC Lighting

Fresnel 60WW

SKU: CKC-Fres 60

Source: 60W WW LED
Beam angle：14° ～ 32°
Field angle：23° ～ 47°
CCT：3000K (optional：5600K)
Output：2500 Lm
CRI：97
R9：82
TLCI：97
TM-30：Rf 93, Rg 99
IP rating：IP30
Size：210× 272 × 303 mm
N.W：4 kgs

Pay in 4 interest-free installments of $133.12 with

Key Features

Source：60W WW LED
Beam angle：14° ~ 32°
CCT：3000K (Optional：5600K)
Output：2500 Lm
CRI：97
Specifications

Source：60W WW LED
Beam angle：14° ～ 32°
Field angle：23° ～ 47°
CCT：3000K (optional：5600K)
Output：2500 Lm
CRI：97
R9：82
TLCI：97
TM-30：Rf 93, Rg 99
Source lifetime：>20000 H
EFFECT
Strobe：1 ~ 25 Hz
Dimmer Curve：4 kinds
CONTROL & PROGRAM
Channel：1 / 2 / 3 / 4 CH
Protocal：DMX512, RDM
Data connector：5 PIN XLR
Display：OLED display
SOFTWARE
Via DMX/USB signal to update
Intelligent temperature protection to ensure LED service life
HOUSING
Aluminum alloy structure
Natural heat dissipation
OTHER
IP rating：IP30
Work environment：-40℃—45℃
Startup environment：-20℃—45℃
POWER CONSUMPTION
Voltage：AC 100V-240V 50/60HZ
Rated power：57W
SIZE & WEIGHT
Size：210× 272 × 303 mm
N.W：4 kgs
Included Accessories
Buying Guide

Is the Fresnel 60WW right for you?

The Fresnel 60WW is a 60W warm white LED fresnel from CKC Lighting, suited to designers and venues who need strong colour rendering from a compact fixture. It runs at 3000K, with 5600K optional, and is rated CRI 97, TLCI 97 and R9 82. The beam angle ranges from 14° to 32°. Control covers DMX512 and RDM with 1 to 4 channel modes, four dimmer curves and a 1 to 25 Hz strobe. The body is aluminium alloy and the fixture weighs 4 kg.

Also in the range

Other CKC Lighting fresnels include Fresnel 60FC, Fresnel 80TW and Fresnel 350WW. See all fresnel.

Need help choosing? Call StageKraft on +61 2 9982 1494 or email sales@stagekraft.com.au.

Related Products

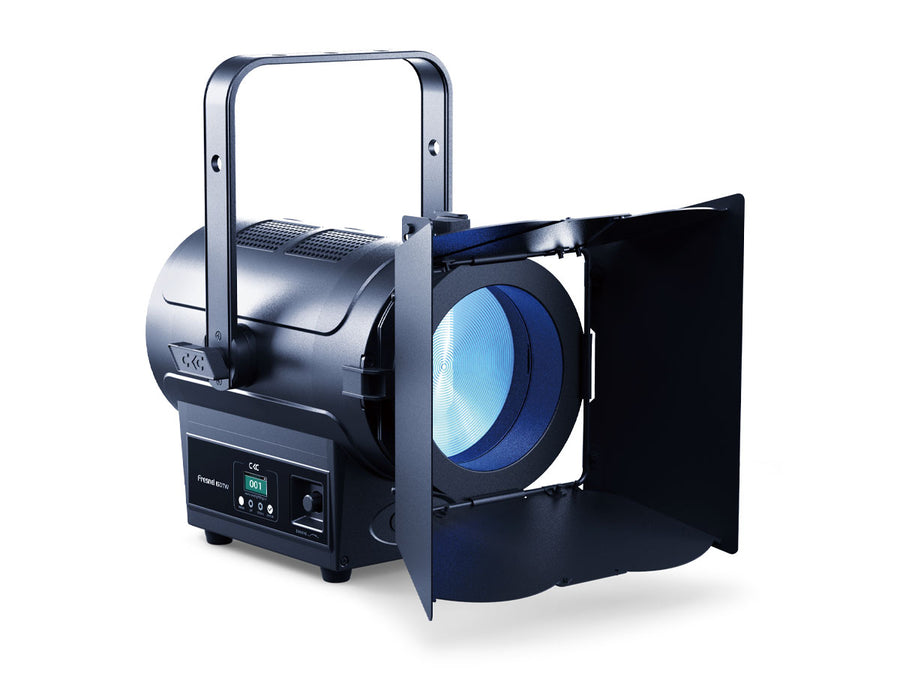

Fresnel 150TW

Fresnel 150TW

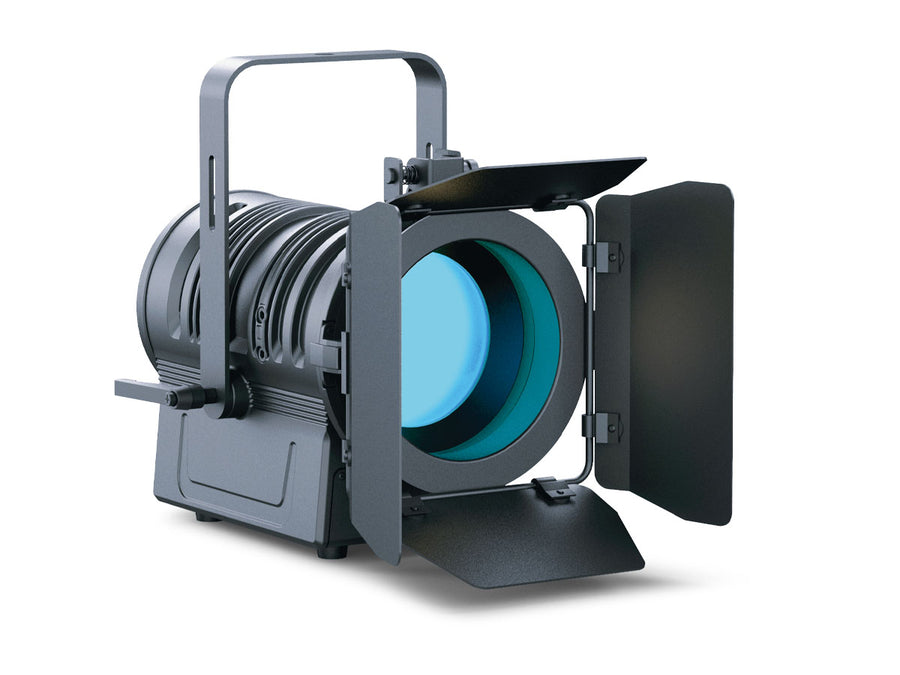

Fresnel 60FC

Fresnel 60FC

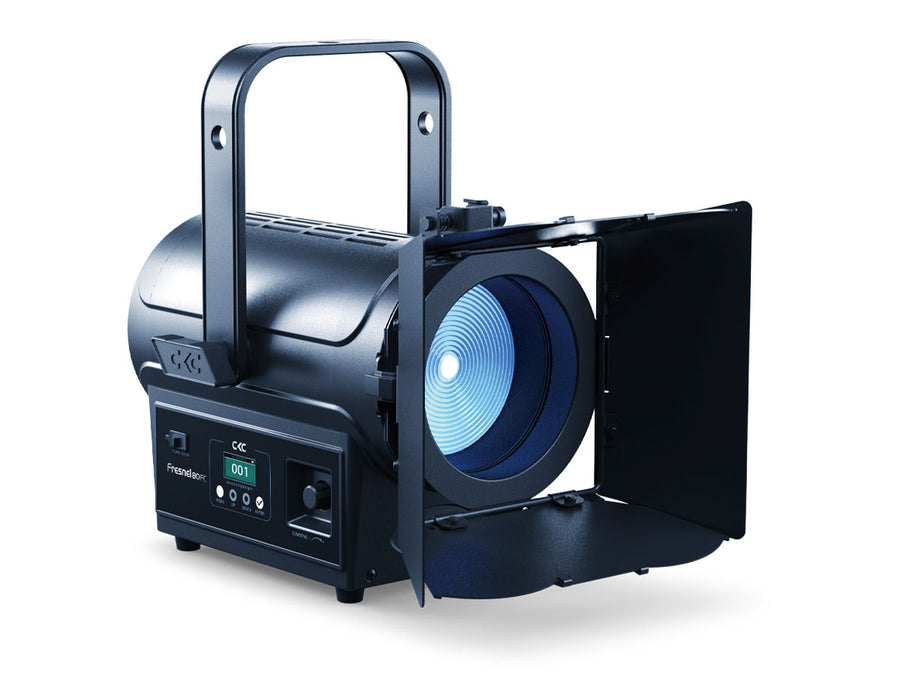

Fresnel 80TW

Fresnel 80TW

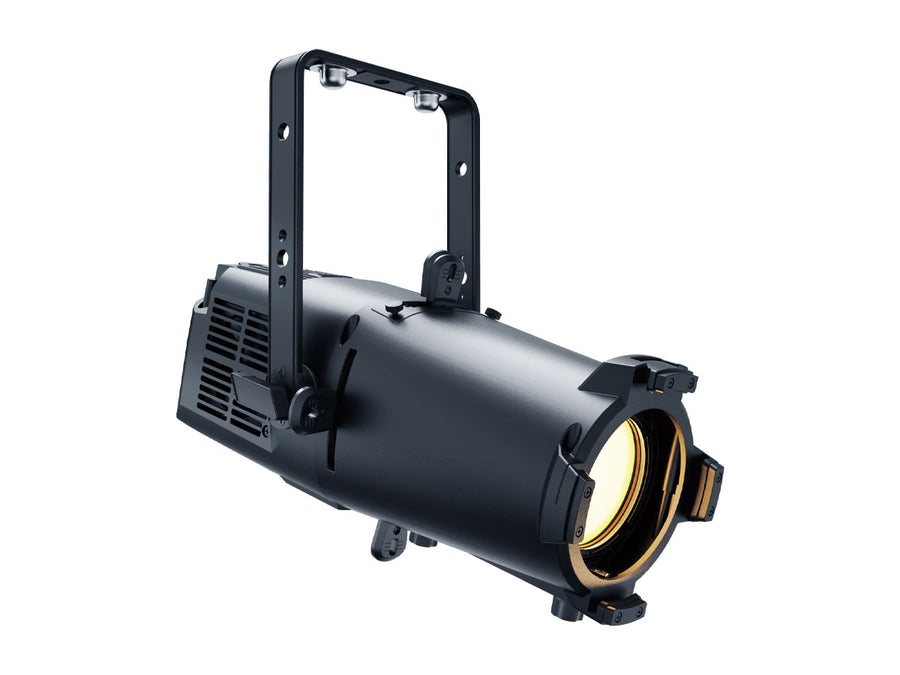

FC Profile 200
